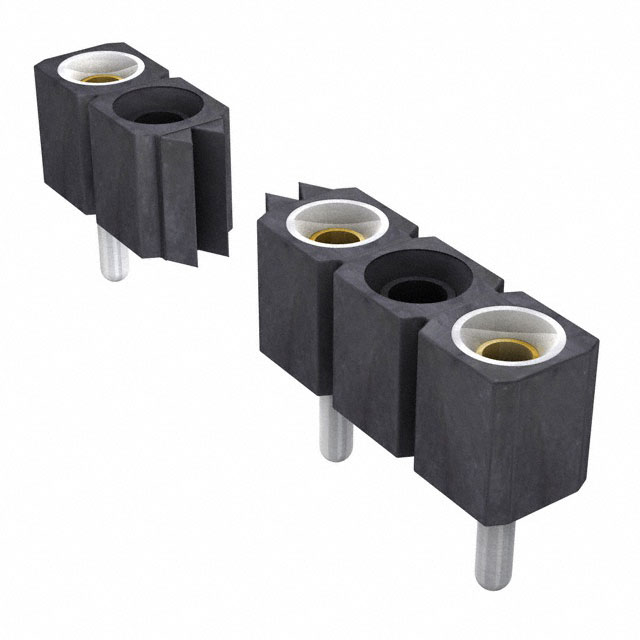

315-87-125-01-881101

Active

PRECI-DIP SA

CONN SOCKET 13POS 0.2 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

315-87-125-01-881101

Active

PRECI-DIP SA

CONN SOCKET 13POS 0.2 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	315-87-125-01-881101

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Length - Post	0.107 "
Contact Length - Post	2.71 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.124 in
Insulation Height	3.14 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	13
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	5.08 mm
Pitch - Mating	0.2 in
Termination	Solder

315-87 Series

Part	Contact Type	Pitch - Mating	Pitch - Mating	Number of Positions	Connector Type	Material Flammability Rating	Fastening Type	Number of Rows	Mounting Type	Insulation Color	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Termination	Contact Material	Number of Positions Loaded	Insulation Material	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height
PRECI-DIP SA 315-87-149-41-003101	Female Socket	0.1 in	2.54 mm	49	Socket	UL94 V-0	Push-Pull	1	Through Hole	Black	2.41 mm	0.095 in	Tin	Solder	Beryllium Copper	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	0.095 in	2.41 mm	Circular	-55 °C	125 °C	Gold
PRECI-DIP SA 315-87-125-01-881101	Female Socket	0.2 in	5.08 mm	13	Socket	UL94 V-0	Push-Pull	1	Through Hole	Black			Tin	Solder	Beryllium Copper	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash			Circular	-55 °C	125 °C	Gold	0.107 "	2.71 mm	0.124 in	3.14 mm
PRECI-DIP SA 315-87-159-41-003101	Female Socket	0.1 in	2.54 mm	59	Socket	UL94 V-0	Push-Pull	1	Through Hole	Black	2.41 mm	0.095 in	Tin	Solder	Beryllium Copper	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	0.095 in	2.41 mm	Circular	-55 °C	125 °C	Gold
PRECI-DIP SA 315-87-131-41-001101	Female Socket	0.1 in	2.54 mm	31	Socket	UL94 V-0	Push-Pull	1	Through Hole	Black			Tin	Solder	Beryllium Copper	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash			Circular	-55 °C	125 °C	Gold	0.107 "	2.71 mm	0.124 in	3.14 mm
PRECI-DIP SA 315-87-161-41-003101	Female Socket	0.1 in	2.54 mm	61	Socket	UL94 V-0	Push-Pull	1	Through Hole	Black	2.41 mm	0.095 in	Tin	Solder	Beryllium Copper	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	0.095 in	2.41 mm	Circular	-55 °C	125 °C	Gold
PRECI-DIP SA 315-87-155-01-881101	Female Socket	0.2 in	5.08 mm	28	Socket	UL94 V-0	Push-Pull	1	Through Hole	Black			Tin	Solder	Beryllium Copper	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash			Circular	-55 °C	125 °C	Gold	0.107 "	2.71 mm	0.124 in	3.14 mm
PRECI-DIP SA 315-87-147-41-003101	Female Socket	0.1 in	2.54 mm		Socket	UL94 V-0	Push-Pull	1	Through Hole	Black	2.41 mm	0.095 in	Tin	Solder	Beryllium Copper	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	0.095 in	2.41 mm	Circular	-55 °C	125 °C	Gold
PRECI-DIP SA 315-87-114-41-001101	Female Socket	0.1 in	2.54 mm	14	Socket	UL94 V-0	Push-Pull	1	Through Hole	Black			Tin	Solder	Beryllium Copper	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash			Circular	-55 °C	125 °C	Gold	0.107 "	2.71 mm	0.124 in	3.14 mm
PRECI-DIP SA 315-87-146-41-001101	Female Socket	0.1 in	2.54 mm	46	Socket	UL94 V-0	Push-Pull	1	Through Hole	Black			Tin	Solder	Beryllium Copper	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash			Circular	-55 °C	125 °C	Gold	0.107 "	2.71 mm	0.124 in	3.14 mm
PRECI-DIP SA 315-87-134-41-003101	Female Socket	0.1 in	2.54 mm	34	Socket	UL94 V-0	Push-Pull	1	Through Hole	Black	2.41 mm	0.095 in	Tin	Solder	Beryllium Copper	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	0.095 in	2.41 mm	Circular	-55 °C	125 °C	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	410	$ 1.89

Description

General part information

315-87 Series

13 Position Socket Connector 0.200" (5.08mm) Through Hole Gold
