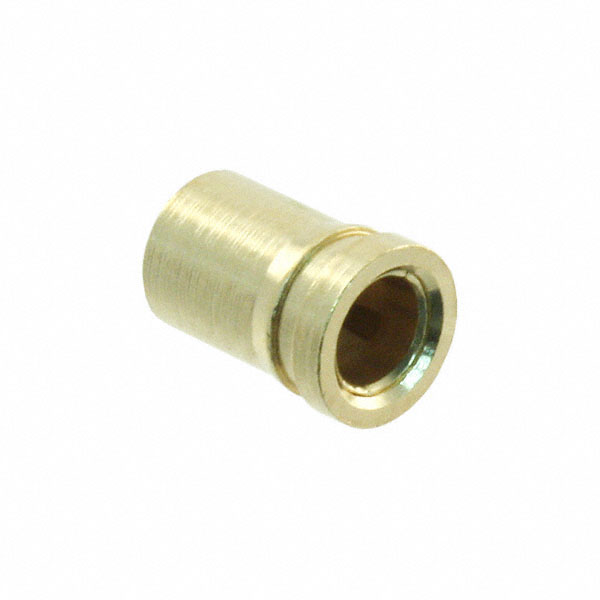

8347-0-15-15-13-27-10-0
ActiveMill-Max Manufacturing Corp.
SOLDER MOUNT RECEPTACLE; ACCEPTS
Deep-Dive with AI
Search across all available documentation for this part.
8347-0-15-15-13-27-10-0
ActiveMill-Max Manufacturing Corp.
SOLDER MOUNT RECEPTACLE; ACCEPTS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8347-0-15-15-13-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] [diameter] | 1.63 mm |
| Accepts Pin Diameter [Max] [diameter] | 0.064 " |
| Accepts Pin Diameter [Min] [diameter] | 0.048 " |
| Accepts Pin Diameter [Min] [diameter] | 1.22 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter | 3.18 mm |
| Flange Diameter [diameter] | 0.125 in |
| Length - Overall [x] | 2.87 in |
| Length - Overall [x] | 72.9 mm |
| Mounting Hole Diameter [diameter] | 2.77 mm |
| Mounting Hole Diameter [diameter] | 0.109 in |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 0.088 in |
| Pin Hole Diameter [diameter] | 2.24 mm |
| Tail Type | No Tail |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.04 | |
| 10 | $ 0.88 | |||
| 25 | $ 0.84 | |||
| 50 | $ 0.82 | |||
| 100 | $ 0.79 | |||
| 250 | $ 0.72 | |||
| 500 | $ 0.64 | |||
| 1000 | $ 0.57 | |||
| 3000 | $ 0.52 | |||
Description
General part information
8347-0 Series
Pin Receptacle Connector 0.048" ~ 0.064" (1.22mm ~ 1.63mm) No Tail Solder
