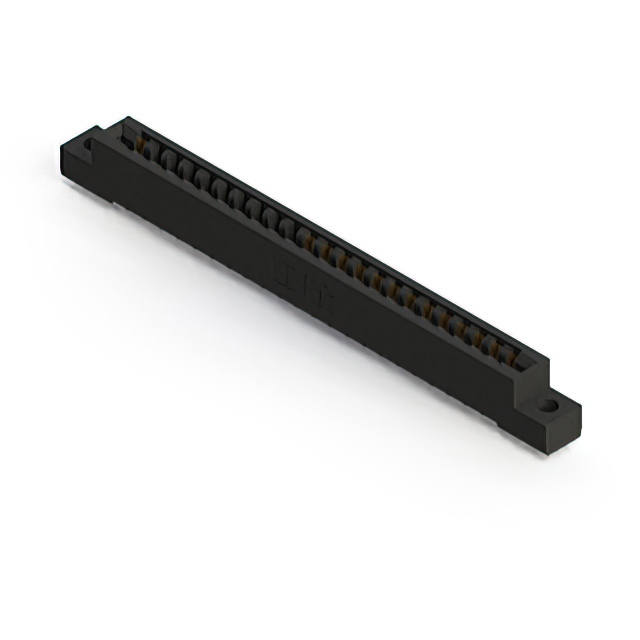

357-023-545-102
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
357-023-545-102
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 357-023-545-102 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 23 |
| Number of Positions/Bay/Row [custom] | 23 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
357-023 Series
...
| Part | Pitch [x] | Pitch [x] | Contact Type | Color | Flange Feature | Termination Rows | Read Out | Material - Insulation | Mounting Type | Number of Positions | Number of Positions/Bay/Row [custom] | Gender | Number of Rows | Contact Material | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.156 in | 3.96 mm | Semi Bellows | Black | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Dual | Polyester Thermoplastic | Through Hole Right Angle | 46 | 23 | Female | 2 | Copper Alloy | Gold | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 0.156 in | 3.96 mm | Semi Bellows | Black | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Dual | Polyester Thermoplastic | Through Hole | 46 | 23 | Female | 2 | Copper Alloy | Tin | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | |||||
EDAC Inc. | 0.156 in | 3.96 mm | Semi Bellows | Black | Floating Bobbin Flush Mount | 1 | Single | Polyester Thermoplastic | Through Hole | 23 | 23 | Female | 1 | Copper Alloy | Tin | -40 °C | 105 ░C | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 0.116 in | 2.95 mm | |||
EDAC Inc. | 0.156 in | 3.96 mm | Semi Bellows | Black | Floating Bobbin Flush Mount | 1 | Single | Polyester Thermoplastic | Through Hole | 23 | 23 | Female | 1 | Copper Alloy | Gold | -40 °C | 105 ░C | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 Áin | 0.25 Ám | 0.116 in | 2.95 mm | |
EDAC Inc. | 0.156 in | 3.96 mm | Semi Bellows | Black | Flush Mount M3 Threaded Insert Top Opening | 1 | Single | Polyester Thermoplastic | Through Hole Right Angle | 23 | 23 | Female | 1 | Copper Alloy | Gold | -40 °C | 105 ░C | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 0.156 in | 3.96 mm | Semi Bellows | Black | Flush Mount Top Opening Unthreaded | 1 | Single | Polyester Thermoplastic | Through Hole | 23 | 23 | Female | 1 | Copper Alloy | Gold | -40 °C | 105 ░C | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 10 Áin | 0.25 Ám | 0.128 " | 3.25 mm | |
EDAC Inc. | 0.156 in | 3.96 mm | Semi Bellows | Black | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Single | Polyester Thermoplastic | Through Hole | 23 | 23 | Female | 1 | Copper Alloy | Gold | -40 °C | 105 ░C | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 0.156 in | 3.96 mm | Semi Bellows | Black | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Dual | Polyester Thermoplastic | Through Hole Right Angle | 46 | 23 | Female | 2 | Copper Alloy | Tin | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Card Guides | ||||
EDAC Inc. | 0.156 in | 3.96 mm | Semi Bellows | Black | Floating Bobbin Flush Mount | 1 | Dual | Polyester Thermoplastic | Through Hole | 46 | 23 | Female | 2 | Copper Alloy | Tin | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 0.116 in | 2.95 mm | |||
EDAC Inc. | 0.156 in | 3.96 mm | Semi Bellows | Black | Flush Mount M3 Threaded Insert Top Opening | 1 | Dual | Polyester Thermoplastic | Through Hole | 46 | 23 | Female | 2 | Copper Alloy | Gold | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
357-023 Series
23 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
