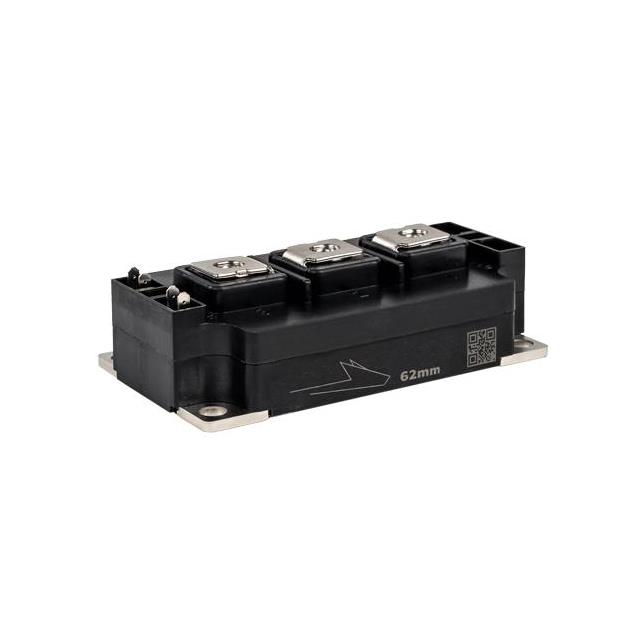

WAS530M12BM3

Active

Wolfspeed

SIC 2N-CH 1200V 630A

Search across all available documentation for this part.

Active

Wolfspeed

SIC 2N-CH 1200V 630A

Technical Specifications

Parameters and characteristics for this part

Specification	WAS530M12BM3

Configuration	2 N-Channel (Half Bridge)
Current - Continuous Drain (Id) @ 25°C	630 A
Drain to Source Voltage (Vdss)	1200 V
Drain to Source Voltage (Vdss)	1.2 kV
Gate Charge (Qg) (Max) @ Vgs [Max]	1362 nC
Input Capacitance (Ciss) (Max) @ Vds	38900 pF
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Rds On (Max) @ Id, Vgs [Max]	3.47 mOhm
Technology	Silicon Carbide (SiC)
Vgs(th) (Max) @ Id	3.6 V

Part	Configuration	Current - Continuous Drain (Id) @ 25°C	Package / Case	Vgs(th) (Max) @ Id	Drain to Source Voltage (Vdss)	Drain to Source Voltage (Vdss)	Rds On (Max) @ Id, Vgs [Max]	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Gate Charge (Qg) (Max) @ Vgs [Max]	Input Capacitance (Ciss) (Max) @ Vds	Mounting Type
Wolfspeed WAS530M12BM3	2 N-Channel (Half Bridge)	630 A	Module	3.6 V	1200 V	1.2 kV	3.47 mOhm	Silicon Carbide (SiC)	150 °C	-40 °C	1362 nC	38900 pF	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1000.14

General part information

Mosfet Array 1200V (1.2kV) 630A (Tc) Chassis Mount
