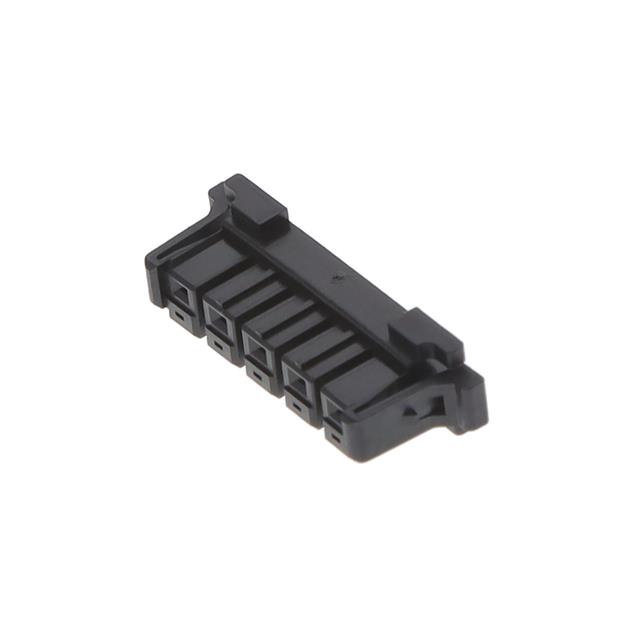

MDF97-5S-3.5C

Active

Hirose Electric USA, Inc.

CONN SOCKET

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN SOCKET

Technical Specifications

Parameters and characteristics for this part

Specification	MDF97-5S-3.5C

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in

Part	Wire Gauge	Pitch [x]	Pitch [x]	Connector Type	Contact Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Mounting Type	Insulation Material	Contact Termination
Hirose Electric USA, Inc. MDF97-22SC	22 AWG
Hirose Electric USA, Inc. MDF97-5S-3.5C		3.5 mm	0.138 in	Receptacle	Female Socket	Black	-40 °C	105 ░C	1	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Rectangular Connectors - Housings Receptacle Black 0.138" (3.50mm)

Technical documentation and resources

No documents available
