SRD2-2G-DC-1-BNN

Active

Switch Components

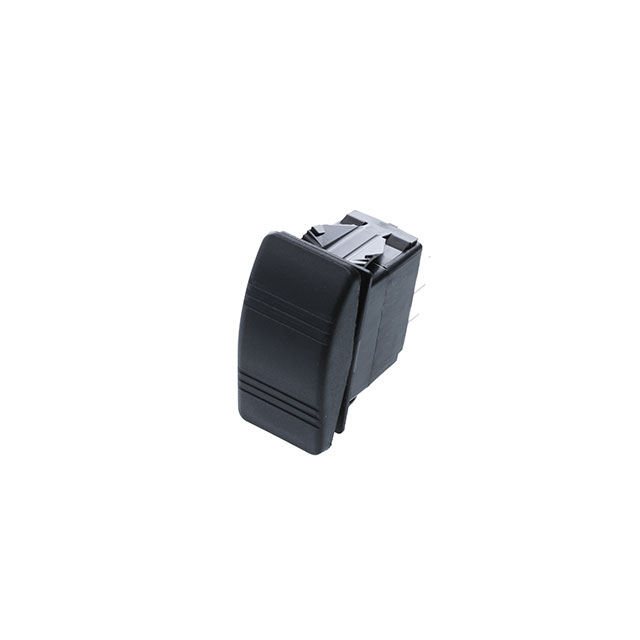

ROCKER; DPDT; POS: 3; (ON)-OFF-(ON); 21A/14VDC; SRD2; 50MΩ; -25÷85°C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SRD2-2G-DC-1-BNN

Active

Switch Components

ROCKER; DPDT; POS: 3; (ON)-OFF-(ON); 21A/14VDC; SRD2; 50MΩ; -25÷85°C

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRD2-2G-DC-1-BNN

Actuator Marking	No Marking
Actuator Type	Convex (Reverse V)
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	21 A, 20 A
Electrical Life	6000 Cycles
Ingress Protection	IP56 - Dust Protected, Water Resistant
Mechanical Life	10000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	36.8 mm
Panel Cutout Dimensions [y]	21.2 mm
Switch Function	Mom-Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	14 V

SRD2-2F Series

Part	Actuator Marking	Circuit	Electrical Life	Termination Style	Color - Actuator/Cap	Mounting Type	Voltage Rating - DC	Ingress Protection	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Switch Function	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Mechanical Life	Actuator Type
Switch Components SRD2-2F-DC-1-BNN	No Marking	DPDT	6000 Cycles	Quick Connect - 0.250" (6.3mm)	Black	Panel Mount Snap-In	14 V	IP56 - Dust Protected Water Resistant	125 V	-25 °C	85 °C	20 A 21 A	On-Off-On	36.8 mm	21.2 mm	10000 Steps	Convex (Reverse V)
Switch Components SRD2-2B-DC-1-RNN	No Marking	DPST-NO	6000 Cycles	Quick Connect - 0.250" (6.3mm)	Red	Panel Mount Snap-In	14 V	IP56 - Dust Protected Water Resistant	125 V	-25 °C	85 °C	20 A 21 A	Off-Mom	36.8 mm	21.2 mm	10000 Steps	Convex (Reverse V)
Switch Components SRD2-2F-DC-1-RNN	No Marking	DPDT	6000 Cycles	Quick Connect - 0.250" (6.3mm)	Red	Panel Mount Snap-In	14 V	IP56 - Dust Protected Water Resistant	125 V	-25 °C	85 °C	20 A 21 A	On-Off-On	36.8 mm	21.2 mm	10000 Steps	Convex (Reverse V)
Switch Components SRD2-2B-AC-1-BNN	No Marking	DPST		Quick Connect - 0.250" (6.3mm)	Black	Panel Mount Snap-In		IP56 - Dust Protected Water Resistant	125 V	-25 °C	85 °C	20 A	Off-Mom	36.8 mm	21.2 mm		Convex (Reverse V)
Switch Components SRD2-2G-DC-1-RNN	No Marking	DPDT	6000 Cycles	Quick Connect - 0.250" (6.3mm)	Red	Panel Mount Snap-In	14 V	IP56 - Dust Protected Water Resistant	125 V	-25 °C	85 °C	20 A 21 A	Mom-Off-Mom	36.8 mm	21.2 mm	10000 Steps	Convex (Reverse V)
Switch Components SRD2-2G-DC-1-BNN	No Marking	DPDT	6000 Cycles	Quick Connect - 0.250" (6.3mm)	Black	Panel Mount Snap-In	14 V	IP56 - Dust Protected Water Resistant	125 V	-25 °C	85 °C	20 A 21 A	Mom-Off-Mom	36.8 mm	21.2 mm	10000 Steps	Convex (Reverse V)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.92
		10	$ 11.44
		25	$ 11.00
		50	$ 10.40
		100	$ 9.89
		250	$ 9.39
		500	$ 8.54
		1000	$ 7.82
TME	N/A	1	$ 13.86

Description

General part information

SRD2-2F Series

Rocker Switch DPDT 20 (AC), 21 (DC) 125 V Panel Mount, Snap-In
