W25Q80BWBYIG TR

Obsolete

Winbond Electronics

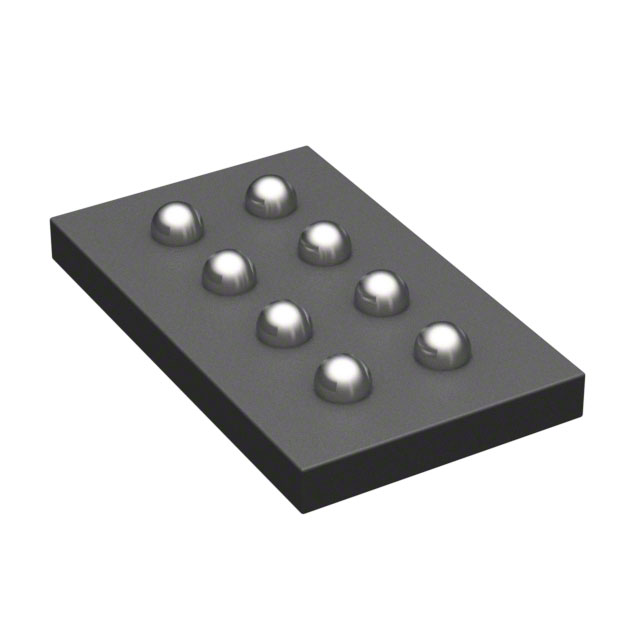

IC FLASH 8MBIT SPI/QUAD 8WLCSP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

W25Q80BWBYIG TR

Obsolete

Winbond Electronics

IC FLASH 8MBIT SPI/QUAD 8WLCSP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	W25Q80BWBYIG TR

Clock Frequency	80 MHz
Memory Format	FLASH
Memory Interface	SPI - Quad I/O
Memory Organization [custom]	1 M
Memory Organization [custom]	8 bits
Memory Size	1024 KB
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	WLCSP, 8-UFBGA
Supplier Device Package	8-WLCSP
Supplier Device Package [x]	1.41
Supplier Device Package [y]	2.37
Technology	FLASH - NOR
Voltage - Supply [Max]	1.95 V
Voltage - Supply [Min]	1.65 V
Write Cycle Time - Word, Page	800 µs

W25Q80 Series

Part	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Memory Type	Mounting Type	Clock Frequency	Memory Format	Supplier Device Package	Write Cycle Time - Word, Page	Memory Size	Package / Case	Memory Interface	Memory Organization [custom]	Memory Organization [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Access Time	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Supplier Device Package [x]	Supplier Device Package [y]	Package / Case [y]	Package / Case [x]
Winbond Electronics W25Q80DLZPIG	FLASH - NOR	85 °C	-40 °C	Non-Volatile	Surface Mount	104 MHz	FLASH	8-WSON (6x5)	3 ms	1024 KB	8-WDFN Exposed Pad	SPI - Quad I/O	1 M	8 bits	2.3 V	3.6 V
Winbond Electronics W25Q80BVZPBG	FLASH - NOR	85 °C	-40 °C	Non-Volatile	Surface Mount	104 MHz	FLASH	8-WSON (6x5)		1024 KB	8-WDFN Exposed Pad	SPI - Quad I/O	1 M	8 bits	2.5 V	3.6 V	6 ns	3 ms	50 µs
Winbond Electronics W25Q80BVZPAG	FLASH - NOR	105 °C	-40 °C	Non-Volatile	Surface Mount	104 MHz	FLASH	8-WSON (6x5)		1024 KB	8-WDFN Exposed Pad	SPI - Quad I/O	1 M	8 bits	2.5 V	3.6 V	6 ns	3 ms	50 µs
Winbond Electronics W25Q80DVZPIG TR	FLASH - NOR	85 °C	-40 °C	Non-Volatile	Surface Mount	104 MHz	FLASH	8-WSON (6x5)	3 ms	1024 KB	8-WDFN Exposed Pad	SPI - Quad I/O	1 M	8 bits	2.7 V	3.6 V
Winbond Electronics W25Q80BVNB03	FLASH - NOR			Non-Volatile		104 MHz	FLASH			1024 KB		SPI - Quad I/O	1 M	8 bits	2.5 V	3.6 V	6 ns	3 ms	50 µs
Winbond Electronics W25Q80BWBYIG TR	FLASH - NOR	85 °C	-40 °C	Non-Volatile	Surface Mount	80 MHz	FLASH	8-WLCSP	800 µs	1024 KB	8-UFBGA WLCSP	SPI - Quad I/O	1 M	8 bits	1.65 V	1.95 V				1.41	2.37
Winbond Electronics W25Q80BVSSIG TR	FLASH - NOR	85 °C	-40 °C	Non-Volatile	Surface Mount	104 MHz	FLASH	8-SOIC	3 ms	1024 KB	8-SOIC	SPI - Quad I/O	1 M	8 bits	2.7 V	3.6 V						5.3 mm	0.209 "
Winbond Electronics W25Q80JVSVIQ TR	FLASH - NOR	85 °C	-40 °C	Non-Volatile	Surface Mount	133 MHz	FLASH	8-VSOP	3 ms	1024 KB	8-SOIC	SPI - Quad I/O	1 M	8 bits	2.7 V	3.6 V						3.9 mm	0.154 in
Winbond Electronics W25Q80JVSNIQ TR	FLASH - NOR	85 °C	-40 °C	Non-Volatile	Surface Mount	133 MHz	FLASH	8-SOIC	3 ms	1024 KB	8-SOIC	SPI - Quad I/O	1 M	8 bits	2.7 V	3.6 V						3.9 mm	0.154 in
Winbond Electronics W25Q80BLSVIG	FLASH - NOR	85 °C	-40 °C	Non-Volatile	Surface Mount	80 MHz	FLASH	8-VSOP	800 µs	1024 KB	8-SOIC	SPI - Quad I/O	1 M	8 bits	2.3 V	3.6 V						3.9 mm	0.154 in
