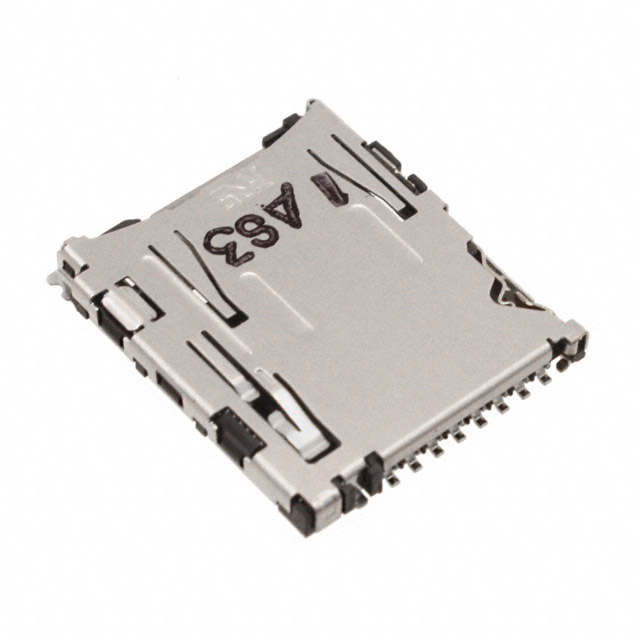

DM3AT-SF-PEJM5(11)
ActiveHirose Electric USA, Inc.
CONN MICRO SD R/A PUSH-PUSH SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DM3AT-SF-PEJM5(11)
ActiveHirose Electric USA, Inc.
CONN MICRO SD R/A PUSH-PUSH SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DM3AT-SF-PEJM5(11) |
|---|---|
| Card Type | Secure Digital - microSD™ |
| Connector Type | Connector and Ejector |
| Contact Finish | Gold |
| Features | Switch |
| Height Above Board | 0.066 in |
| Height Above Board | 1.68 mm |
| Insertion, Removal Method | Push Out, Push In |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 10 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.52 | |
| 10 | $ 2.29 | |||
| 25 | $ 2.17 | |||
| 50 | $ 2.12 | |||
| 100 | $ 2.02 | |||
| 250 | $ 1.77 | |||
| 500 | $ 1.72 | |||
| Digi-Reel® | 1 | $ 2.52 | ||
| 10 | $ 2.29 | |||
| 25 | $ 2.17 | |||
| 50 | $ 2.12 | |||
| 100 | $ 2.02 | |||
| 250 | $ 1.77 | |||
| 500 | $ 1.72 | |||
| Tape & Reel (TR) | 1500 | $ 1.42 | ||
| 3000 | $ 1.33 | |||
| 4500 | $ 1.28 | |||
| 7500 | $ 1.25 | |||
Description
General part information
DM3AT Series
10 (8 + 2) Position Card Connector Secure Digital - microSD™ Surface Mount, Right Angle Gold
