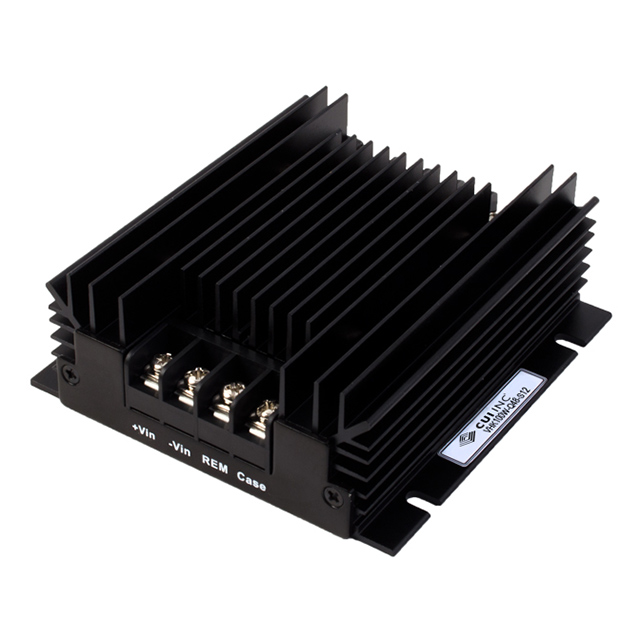

VHK100W-Q48-S12

Active

CUI Inc.

DC/DC CONVERTER 12V 100W

Deep-Dive with AI

Search across all available documentation for this part.

VHK100W-Q48-S12

Active

CUI Inc.

DC/DC CONVERTER 12V 100W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VHK100W-Q48-S12

Current - Output (Max) [Max]	8.3 A
Efficiency	85.5 %
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	100 W
Size / Dimension [x]	4.23 "
Size / Dimension [x]	107.5 mm
Size / Dimension [y]	101.8 mm
Size / Dimension [y]	4.01 in
Size / Dimension [z]	38 mm
Size / Dimension [z]	1.5 "
Type	Enclosed
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Output 1	12 V

VHK100W Series

Part	Number of Outputs	Power (Watts)	DC Voltage - Input (Min) [Min]	DC Voltage - Input (Max) [Max]	Voltage - Output 1	Current - Output (Max) [Max]	Efficiency	Input Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Voltage - Input (Min) [Min]	Mounting Type	Type	Voltage - Input (Max) [Max]
CUI Inc. VHK100W-Q24-S3R3-DIN	1	100 W	9 V	36 V	3.3 V	20 A	80 %	DC	4.23 "	101.9 mm	107.4 mm	4.01 in	52.6 mm	2.07 in	85 °C	-40 °C	CE
CUI Inc. VHK100W-Q24-S12	1	100 W			12 V	8.3 A	84 %		4.23 "	101.8 mm	107.5 mm	4.01 in	38 mm	1.5 "	85 °C	-40 °C		9 V	Chassis Mount	Enclosed	36 V
CUI Inc. VHK100W-Q48-S12	1	100 W			12 V	8.3 A	85.5 %		4.23 "	101.8 mm	107.5 mm	4.01 in	38 mm	1.5 "	85 °C	-40 °C		18 V	Chassis Mount	Enclosed	75 V
CUI Inc. VHK100W-Q24-S28	1	100 W			28 V	3.57 A	86 %		4.23 "	101.9 mm	107.4 mm	4.01 in	38.1 mm	1.5 "	85 °C	-40 °C		9 V	Chassis Mount	Enclosed	36 V
CUI Inc. VHK100W-Q48-S12-DIN	1	100 W	18 V	75 V	12 V	8.3 A	85.5 %	DC	4.23 "	101.9 mm	107.4 mm	4.01 in	52.6 mm	2.07 in	85 °C	-40 °C	CE
CUI Inc. VHK100W-Q48-S15	1	100 W			15 V	6.7 A	86.5 %		4.23 "	101.8 mm	107.5 mm	4.01 in	38 mm	1.5 "	85 °C	-40 °C		18 V	Chassis Mount	Enclosed	75 V
CUI Inc. VHK100W-Q48-S5-DIN	1	100 W	18 V	75 V	5 V	20 A	84.5 %	DC	4.23 "	101.9 mm	107.4 mm	4.01 in	52.6 mm	2.07 in	85 °C	-40 °C	CE
CUI Inc. VHK100W-Q48-S28	1	100 W			28 V	3.57 A	86 %		4.23 "	101.9 mm	107.4 mm	4.01 in	38.1 mm	1.5 "	85 °C	-40 °C		18 V	Chassis Mount	Enclosed	75 V
CUI Inc. VHK100W-Q24-S24-DIN	1	100 W	9 V	36 V	24 V	4.17 A	85 %	DC	4.23 "	101.9 mm	107.4 mm	4.01 in	52.6 mm	2.07 in	85 °C	-40 °C	CE
CUI Inc. VHK100W-Q24-S15-DIN	1	100 W	9 V	36 V	15 V	6.7 A	85.5 %	DC	4.23 "	101.9 mm	107.4 mm	4.01 in	52.6 mm	2.07 in	85 °C	-40 °C	CE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 183.34
		5	$ 180.38
		10	$ 177.42
		32	$ 165.59

Description

General part information

VHK100W Series

Enclosed DC DC Converter 1 Output 12V 8.3A 75V Input

Documents

Technical documentation and resources

No documents available
