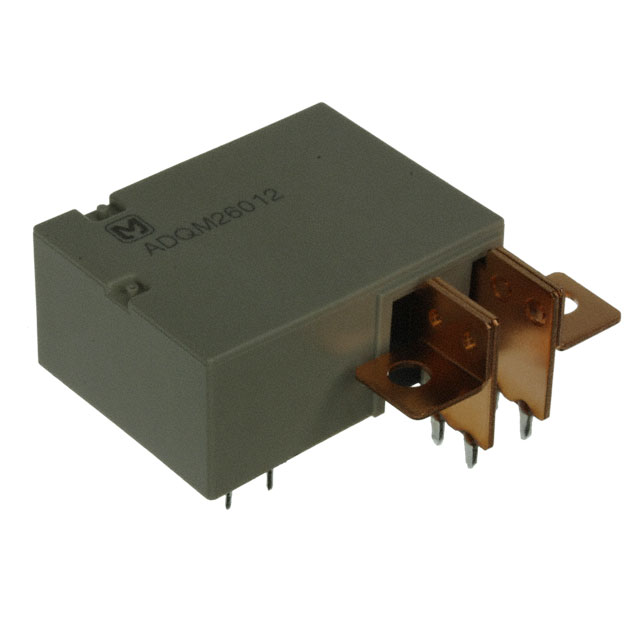

ADQM26012

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE SPST 60A 12V

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE SPST 60A 12V

Technical Specifications

Parameters and characteristics for this part

Part	Contact Form	Coil Type	Contact Rating (Current)	Must Operate Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage	Release Time	Contact Material	Coil Current	Mounting Type	Seal Rating	Operate Time	Load - Max Switching	Coil Resistance	Relay Type	Coil Voltage	Termination Style
Panasonic Electric Works ADQM26012	SPST-NO (1 Form A)	Latching Dual Coil	60 A	9.6 VDC	-40 °C	70 °C	250 VAC	20 ms	Cadmium Free Silver Alloy	83.3 mA	Through Hole	Sealed - Flux Protection	20 ms	15000 VA	144 Ohms	General Purpose	12 VDC	PC Pin
Panasonic Electric Works ADQM26024	SPST-NO (1 Form A)	Latching Dual Coil	60 A	19.2 VDC	-40 °C	70 °C	250 VAC	20 ms	Cadmium Free Silver Alloy	41.7 mA	Through Hole	Sealed - Flux Protection	20 ms	15000 VA	576 Ohms	General Purpose	24 VDC	PC Pin
