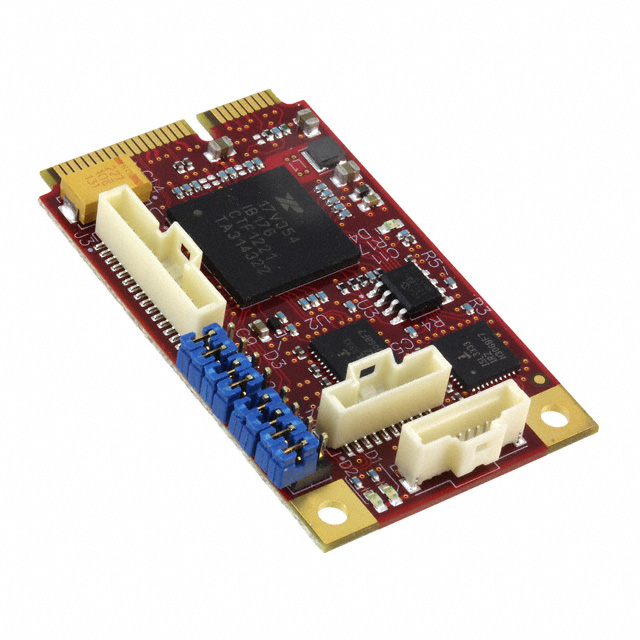

VL-MPEE-U2E

Active

VersaLogic Corporation

MINIPCIE SERIAL + GPIO

Search across all available documentation for this part.

Active

VersaLogic Corporation

MINIPCIE SERIAL + GPIO

Technical Specifications

Parameters and characteristics for this part

Part	Form Factor	Ethernet	Function	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Expansion Site/Bus	RS-232 (422, 485)	Digital I/O Lines	Analog Input:Output [custom]	Analog Input:Output [custom]
VersaLogic Corporation VL-MPEE-E6E	Mini PCIe module (full size)	10 Mbps 100 Mbps 1000 Mbps	Ethernet miniPCIe	0.59 W	30 mm	50.95 mm	1.181 in	2.005 in	85 °C	-40 °C	PCI Express
VersaLogic Corporation VL-MPEE-U2E	Mini PCIe module (full size)		Four serial ports	250 mW	30 mm	50.95 mm	1.181 in	2.005 in	85 °C	-40 °C	PCI Express	4	12
VersaLogic Corporation VL-MPEE-A2E	Mini PCIe module (full size)		Analog Input	450 mW	30 mm	50.95 mm	1.181 in	2.005 in	85 °C	-40 °C	PCI Express		3	8	0
VersaLogic Corporation VL-MPEE-A1E	Mini PCIe module (full size)		Analog Input	450 mW	30 mm	50.95 mm	1.181 in	2.005 in	85 °C	-40 °C	PCI Express		3	8	0
VersaLogic Corporation VL-MPEE-E6E-P	Mini PCIe module (full size)	10 Mbps 100 Mbps 1000 Mbps	Ethernet / miniPCIe with POE+	0.59 W	30 mm	50.95 mm	1.181 in	2.005 in	85 °C	-40 °C	PCI Express

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 149.00

General part information

MINIPCIE SERIAL + GPIO

Technical documentation and resources
