846-036-520-112

Active

EDAC Inc.

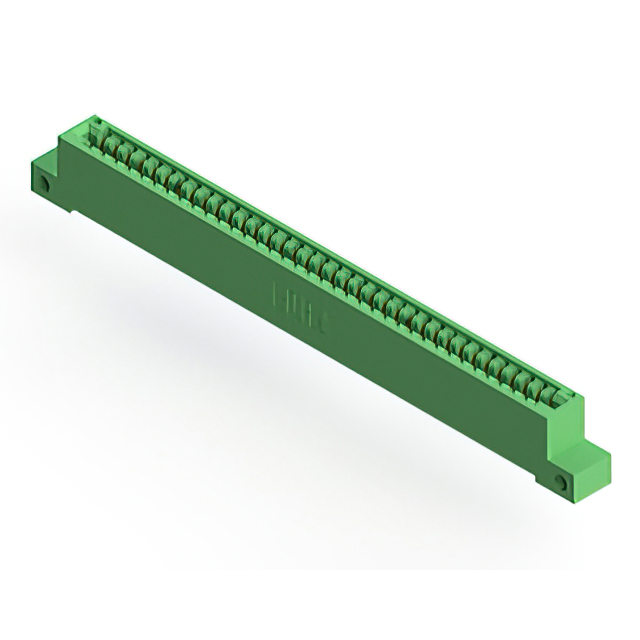

CONN EDGE SGL FMALE 36POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

846-036-520-112

Active

EDAC Inc.

CONN EDGE SGL FMALE 36POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	846-036-520-112

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Unthreaded, Flush Mount, Side Opening
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	36
Number of Positions/Bay/Row [custom]	36
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Single
Termination	Solder
Termination Rows	1

846-036 Series

...

Part	Contact Type	Termination Rows	Contact Material	Number of Rows	Pitch [x]	Pitch [x]	Read Out	Number of Positions	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Contact Finish	Gender	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Color	Number of Positions/Bay/Row [custom]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 846-036-541-201	Cantilever	2	Copper Alloy	2	0.125 in	3.18 mm	Dual	36	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Female	Wire Wrap	125 °C	-40 °C	Green	18	10 Áin	0.25 Ám	Through Hole
EDAC Inc. 846-036-520-112	Cantilever	1	Copper Alloy	1	0.125 in	3.18 mm	Single	36	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Gold	Female	Solder	125 °C	-40 °C	Green	36	10 Áin	0.25 Ám	Through Hole	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "
EDAC Inc. 846-036-521-604	Cantilever	1	Copper Alloy	1	0.125 in	3.18 mm	Single	36	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Gold	Female	Solder	125 °C	-40 °C	Green	36	10 Áin	0.25 Ám	Through Hole	3.96 mm	Top Mount Opening Unthreaded	0.156 in
EDAC Inc. 846-036-558-602	Cantilever	1	Copper Alloy	1	0.125 in	3.18 mm	Single	36	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Gold	Female	Solder	125 °C	-40 °C	Green	36	10 Áin	0.25 Ám	Through Hole Right Angle				3.25 mm	0.128 in
EDAC Inc. 846-036-541-808	Cantilever	2	Copper Alloy	2	0.125 in	3.18 mm	Dual	36	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Female	Wire Wrap	125 °C	-40 °C	Green	18	10 Áin	0.25 Ám	Through Hole		4-40 Threaded Insert Top Mount Opening
EDAC Inc. 846-036-500-207	Cantilever	2	Copper Alloy	2	0.125 in	3.18 mm	Dual	36	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Female	Solder Eyelet(s)	125 °C	-40 °C	Green	18	10 Áin	0.25 Ám	Through Hole		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 846-036-520-101	Cantilever	1	Copper Alloy	1	0.125 in	3.18 mm	Single	36	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Gold	Female	Solder	125 °C	-40 °C	Green	36	10 Áin	0.25 Ám	Through Hole
EDAC Inc. 846-036-541-602	Cantilever	1	Copper Alloy	1	0.125 in	3.18 mm	Single	36	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Gold	Female	Wire Wrap	125 °C	-40 °C	Green	36	10 Áin	0.25 Ám	Through Hole				3.25 mm	0.128 in
EDAC Inc. 846-036-540-804	Cantilever	2	Copper Alloy	2	0.125 in	3.18 mm	Dual	36	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Female	Wire Wrap	125 °C	-40 °C	Green	18	10 Áin	0.25 Ám	Through Hole	3.96 mm	Top Mount Opening Unthreaded	0.156 in
EDAC Inc. 846-036-541-104	Cantilever	1	Copper Alloy	1	0.125 in	3.18 mm	Single	36	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Gold	Female	Wire Wrap	125 °C	-40 °C	Green	36	10 Áin	0.25 Ám	Through Hole	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 57.77
Newark	Each	1	$ 66.68
		100	$ 58.36
		250	$ 55.77
		500	$ 52.91
		1000	$ 47.00

Description

General part information

846-036 Series

36 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
