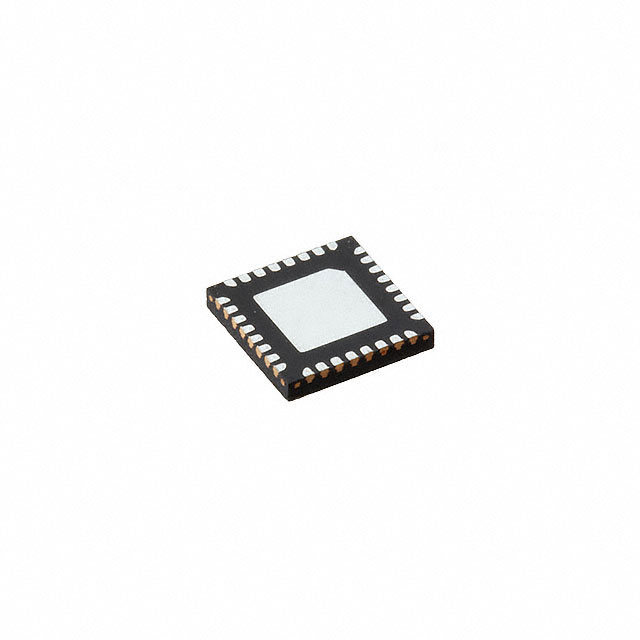

CSR1012A05-IQQP-R
QUALCOMM
IC RF TXRX+MCU BLE 32QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CSR1012A05-IQQP-R
QUALCOMM
IC RF TXRX+MCU BLE 32QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CSR1012A05-IQQP-R |
|---|---|
| Current - Transmitting | 18 mA |
| Data Rate (Max) | 3.69 Mbaud |
| Frequency | 2.4 GHz |
| GPIO | 15 |
| Memory Size [custom] | 64 kB |
| Memory Size [custom] | 64 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | 32-UFQFN Exposed Pad |
| Power - Output | 9 dBm |
| Protocol | Bluetooth v4.0 |
| RF Family/Standard | Bluetooth |
| Sensitivity | -94 dBm |
| Serial Interfaces | UART, I2C, SPI |
| Supplier Device Package | 32-QFN (4x4) |
| Type | TxRx + MCU |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.57 | |
| 10 | $ 2.22 | |||
| 25 | $ 2.09 | |||
| 100 | $ 1.92 | |||
| 250 | $ 1.82 | |||
| 500 | $ 1.75 | |||
| 1000 | $ 1.68 | |||
| Digi-Reel® | 1 | $ 2.57 | ||
| 10 | $ 2.22 | |||
| 25 | $ 2.09 | |||
| 100 | $ 1.92 | |||
| 250 | $ 1.82 | |||
| 500 | $ 1.75 | |||
| 1000 | $ 1.68 | |||
| Tape & Reel (TR) | 2000 | $ 1.24 | ||
Description
General part information
CSR1012 Series
IC RF TxRx + MCU Bluetooth Bluetooth v4.0 2.4GHz 32-UFQFN Exposed Pad
