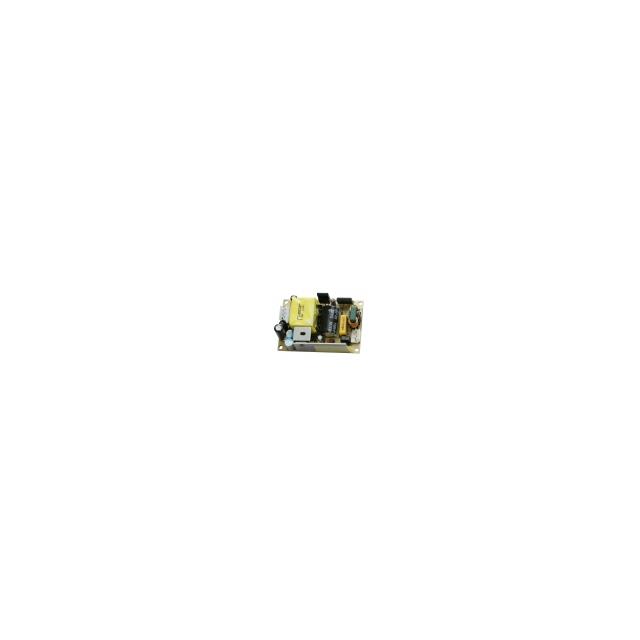

AMEOF45-3.3SJZ

Active

aimtec

AC/DC CONVERTER 3.3V 26.4W

Search across all available documentation for this part.

Active

aimtec

AC/DC CONVERTER 3.3V 26.4W

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Efficiency	Power (Watts)	Type	Features	Mounting Type	Voltage - Isolation	Voltage - Output 1	Current - Output 1	Voltage - Input [Max]	Voltage - Input [Min]
aimtec AMEOF45-3.3SJZ	ITE (Commercial)	1	2 in	3 "	1.18 in	50.8 mm	76.2 mm	30 mm	-25 °C	70 °C	62368-1	76 %	26 W	Open Frame	Universal Input	Chassis Mount	3000 V	3.3 V	8 A
aimtec AMEOF45-48SJZ	ITE (Commercial)	1	2 in	3 "	1.18 in	50.8 mm	76.2 mm	30 mm	-25 °C	70 °C		87 %		Open Frame	Universal Input	Chassis Mount	3000 V	48 V	940 mA	264 VAC 370 VDC	85 VAC 100 V
aimtec AMEOF45-24SJZ	ITE (Commercial)	1	2 in	3 "	1.18 in	50.8 mm	76.2 mm	30 mm	-25 °C	70 °C		86 %		Open Frame	Universal Input	Chassis Mount	3000 V	24 V	1.88 A	264 VAC 370 VDC	85 VAC 100 V
aimtec AMEOF45-15SJZ	ITE (Commercial)	1	2 in	3 "	1.18 in	50.8 mm	76.2 mm	30 mm	-25 °C	70 °C		86 %		Open Frame	Universal Input	Chassis Mount	3000 V	15 V	3 A	264 VAC 370 VDC	85 VAC 100 V
aimtec AMEOF45-5SJZ	ITE (Commercial)	1	2 in	3 "	1.18 in	50.8 mm	76.2 mm	30 mm	-25 °C	70 °C			40 W	Open Frame	Universal Input	Chassis Mount	3000 V	5 V	8 A	264 VAC 370 VDC	85 VAC 100 V
aimtec AMEOF45-12SJZ	ITE (Commercial)	1	2 in	3 "	1.18 in	50.8 mm	76.2 mm	30 mm	-25 °C	70 °C		84 %		Open Frame	Universal Input	Chassis Mount	3000 V	12 V	3.75 A	264 VAC 370 VDC	85 VAC 100 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 3.3V 85 ~ 264 VAC Input
