117-87-316-41-105101

Active

PRECI-DIP SA

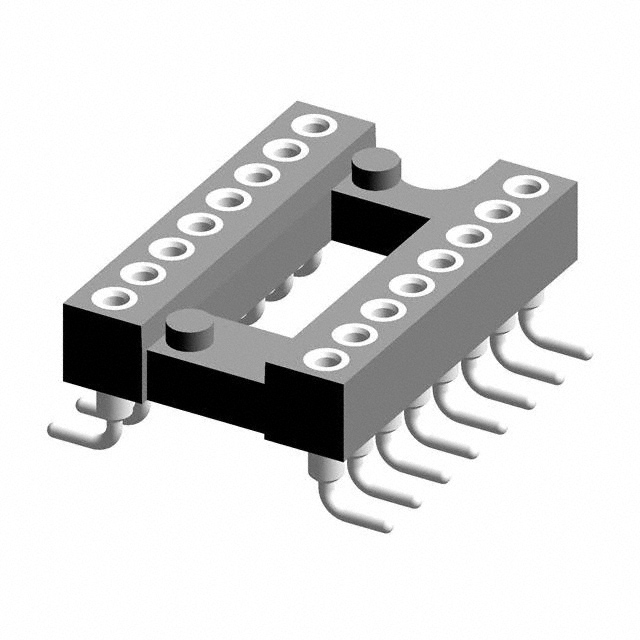

CONN IC DIP SOCKET 16POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

117-87-316-41-105101

Active

PRECI-DIP SA

CONN IC DIP SOCKET 16POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	117-87-316-41-105101

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Material - Mating	Beryllium Copper
Contact Material - Post [custom]	Brass
Contact Resistance	10 mOhm
Current Rating (Amps)	1 A
Features	Open Frame
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	16
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.07 in
Pitch - Mating	1.78 mm
Pitch - Post	0.07 in
Pitch - Post	1.78 mm
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	0.3 "
Type	7.62 mm
Type	DIP

117-87 Series

Part	Contact Finish Thickness - Mating	Pitch - Post	Pitch - Post	Number of Positions or Pins (Grid)	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Material - Post [custom]	Type	Type	Type	Contact Material - Mating	Contact Finish - Mating	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Resistance	Termination	Features	Termination Post Length	Termination Post Length	Current Rating (Amps)	Mounting Type	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
PRECI-DIP SA 117-87-316-41-105101	Flash	0.07 in	1.78 mm	16	Tin	0.07 in	1.78 mm	UL94 V-0	Brass	0.3 "	7.62 mm	DIP	Beryllium Copper	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	10 mOhm	Solder	Open Frame	3.18 mm	0.125 in	1 A	Through Hole
PRECI-DIP SA 117-87-648-41-105101	Flash	0.07 in	1.78 mm	48	Tin	0.07 in	1.78 mm	UL94 V-0	Brass	0.6 in	15.24 mm	DIP	Beryllium Copper	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	10 mOhm	Solder	Open Frame	3.18 mm	0.125 in	1 A	Through Hole
PRECI-DIP SA 117-87-642-41-005101	Flash	0.07 in	1.78 mm	42	Tin	0.07 in	1.78 mm	UL94 V-0	Brass	0.6 in	15.24 mm	DIP	Beryllium Copper	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	10 mOhm	Solder	Open Frame	3.18 mm	0.125 in	1 A	Through Hole
PRECI-DIP SA 117-87-428-41-005101	Flash	0.07 in	1.78 mm	28	Tin	0.07 in	1.78 mm	UL94 V-0	Brass	0.4 in	10.16 mm	DIP	Beryllium Copper	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	10 mOhm	Solder	Open Frame	3.18 mm	0.125 in	1 A	Through Hole
PRECI-DIP SA 117-87-430-41-105101	Flash	0.07 in	1.78 mm	30	Tin	0.07 in	1.78 mm	UL94 V-0	Brass	0.4 in	10.16 mm	DIP	Beryllium Copper	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	10 mOhm	Solder	Open Frame	3.18 mm	0.125 in	1 A	Through Hole	2	15
PRECI-DIP SA 117-87-656-41-105101	Flash	0.07 in	1.78 mm	56	Tin	0.07 in	1.78 mm	UL94 V-0	Brass	0.6 in	15.24 mm	DIP	Beryllium Copper	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	10 mOhm	Solder	Open Frame	3.18 mm	0.125 in	1 A	Through Hole
PRECI-DIP SA 117-87-624-41-105101	Flash	0.07 in	1.78 mm	24	Tin	0.07 in	1.78 mm	UL94 V-0	Brass	0.6 in	15.24 mm	DIP	Beryllium Copper	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	10 mOhm	Solder	Open Frame	3.18 mm	0.125 in	1 A	Through Hole
PRECI-DIP SA 117-87-620-41-005101	Flash	0.07 in	1.78 mm	20	Tin	0.07 in	1.78 mm	UL94 V-0	Brass	0.6 in	15.24 mm	DIP	Beryllium Copper	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	10 mOhm	Solder	Open Frame	3.18 mm	0.125 in	1 A	Through Hole
PRECI-DIP SA 117-87-664-41-005101	Flash	0.07 in	1.78 mm	64	Tin	0.07 in	1.78 mm	UL94 V-0	Brass	0.6 in	15.24 mm	DIP	Beryllium Copper	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	10 mOhm	Solder	Open Frame	3.18 mm	0.125 in	1 A	Through Hole
PRECI-DIP SA 117-87-430-41-005101	Flash	0.07 in	1.78 mm	30	Tin	0.07 in	1.78 mm	UL94 V-0	Brass	0.4 in	10.16 mm	DIP	Beryllium Copper	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	10 mOhm	Solder	Open Frame	3.18 mm	0.125 in	1 A	Through Hole	2	15

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3240	$ 1.20

Description

General part information

117-87 Series

16 (2 x 8) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
