813-SS-006-30-003191

Active

PRECI-DIP SA

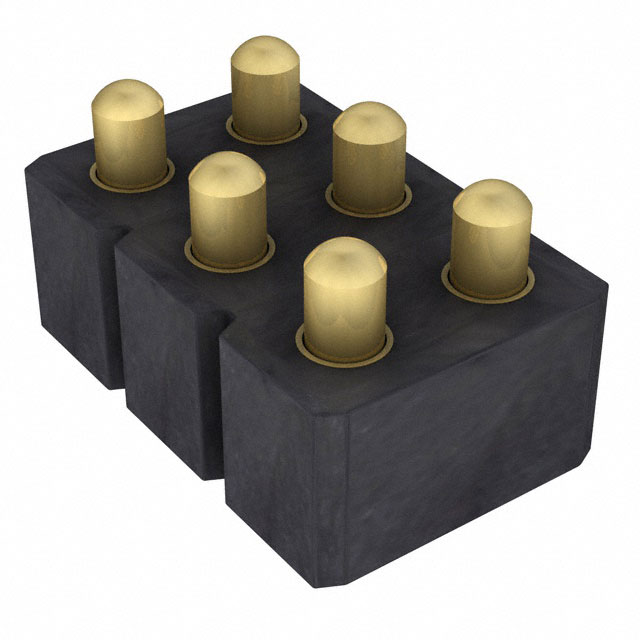

CONN SPRING PISTON 6POS SMD

Search across all available documentation for this part.

Active

PRECI-DIP SA

CONN SPRING PISTON 6POS SMD

Technical Specifications

Parameters and characteristics for this part

...

Part	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Finish	Number of Rows	Mounting Type	Material	Number of Contacts [custom]	Number of Contacts
PRECI-DIP SA 813-SS-004-30-003101	2.54 mm	0.1 in	0.1 in	2.54 mm	19.7 µin	0.5 µm	Piston	Gold	2	Surface Mount	Brass	4
PRECI-DIP SA 813-SS-012-30-022101	2.54 mm	0.1 in	0.1 in	2.54 mm	19.7 µin	0.5 µm	Piston	Gold	2	Surface Mount	Brass		12
PRECI-DIP SA 813-SS-006-30-023101	2.54 mm	0.1 in	0.1 in	2.54 mm	19.7 µin	0.5 µm	Piston	Gold	2	Surface Mount	Brass	6
PRECI-DIP SA 813-SS-004-30-001101	2.54 mm	0.1 in	0.1 in	2.54 mm	19.7 µin	0.5 µm	Piston	Gold	2	Surface Mount	Brass	4
PRECI-DIP SA 813-SS-008-30-002191	2.54 mm	0.1 in	0.1 in	2.54 mm	19.7 µin	0.5 µm	Piston	Gold	2	Surface Mount	Brass		8
PRECI-DIP SA 813-SS-006-30-003191	2.54 mm	0.1 in	0.1 in	2.54 mm	19.7 µin	0.5 µm	Piston	Gold	2	Surface Mount	Brass	6
PRECI-DIP SA 813-SS-020-30-022101	2.54 mm	0.1 in	0.1 in	2.54 mm	19.7 µin	0.5 µm	Piston	Gold	2	Surface Mount	Brass
PRECI-DIP SA 813-SS-024-10-474101	2.54 mm	0.1 in	0.1 in	2.54 mm	19.7 µin	0.5 µm	Piston	Gold	2	Through Hole	Brass		24
PRECI-DIP SA 813-SS-014-30-021101	2.54 mm	0.1 in	0.1 in	2.54 mm	19.7 µin	0.5 µm	Piston	Gold	2	Surface Mount	Brass		14
PRECI-DIP SA 813-SS-042-10-474101	2.54 mm	0.1 in	0.1 in	2.54 mm	19.7 µin	0.5 µm	Piston	Gold	2	Through Hole	Brass		42

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Spring Piston Connector Surface Mount
