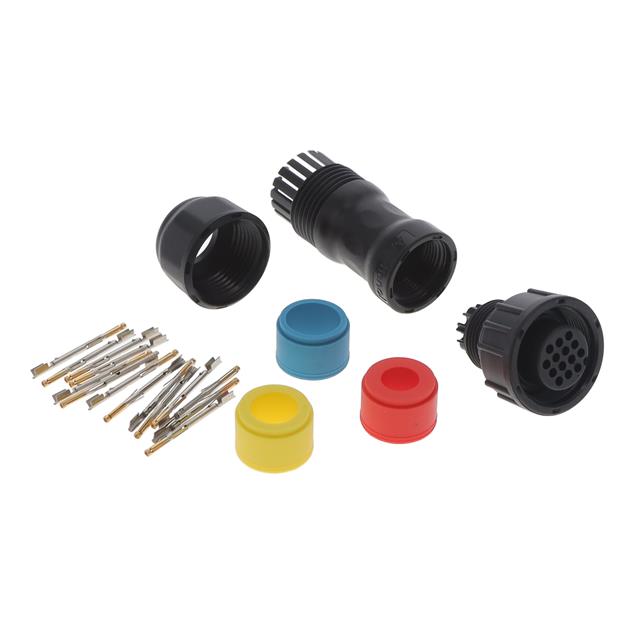

ACD-14BFFC-SL7AP0

Active

Amphenol LTW

CONN PLUG FMALE 14POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ACD-14BFFC-SL7AP0

Active

Amphenol LTW

CONN PLUG FMALE 14POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ACD-14BFFC-SL7AP0

Backshell Material, Plating	Nylon, Polyamide (PA), Glass Filled
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	14
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	C
Shielding	Unshielded
Termination	Crimp
Voltage Rating	300 VDC

ACD-14BFFC Series

Part	Termination	Backshell Material, Plating	Voltage Rating	Mounting Type	Insert Material	Material Flammability Rating	Shell Size - Insert	Number of Positions	Contact Finish - Mating	Features	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Color	Contact Material	Orientation	Connector Type	Shell Material	Shielding	Primary Material	Fastening Type	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]
Amphenol LTW ACD-14BFFC-SL7AP0	Crimp	Glass Filled Nylon Polyamide (PA)	300 VDC	Free Hanging (In-Line)	Polyamide (PA) Nylon Glass Filled	UL94 V-0	C	14	Gold	Backshell Coupling Nut	5 A	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Black	Copper Alloy	Keyed	Female Sockets Plug	Glass Filled Nylon Polyamide (PA)	Unshielded	Plastic	Bayonet Lock
Amphenol LTW ACD-14BFFC-LL7AP0	Crimp	Glass Filled Nylon Polyamide (PA)	300 VDC	Free Hanging (In-Line)	Polyamide (PA) Nylon Glass Filled	UL94 V-0	C	14	Gold	Backshell Coupling Nut	5 A	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Black	Copper Alloy	Keyed	Female Sockets Plug	Glass Filled Nylon Polyamide (PA)	Unshielded	Plastic	Bayonet Lock
Amphenol LTW ACD-14BFFC-SL7LP0	Crimp	Glass Filled Nylon Polyamide (PA)	250 VDC	Free Hanging (In-Line)	Polyamide (PA) Nylon Glass Filled	UL94 V-0	C	14	Gold	Backshell	5 A	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Black	Copper Alloy	Keyed	Female Sockets Plug	Glass Filled Nylon Polyamide (PA)	Unshielded	Plastic		10 mm 12 mm	0.394 in 0.472 in
Amphenol LTW ACD-14BFFC-SL7MP0	Crimp	Glass Filled Nylon Polyamide (PA)	250 VDC	Free Hanging (In-Line)	Polyamide (PA) Nylon Glass Filled	UL94 V-0	C	14	Gold	Backshell	5 A	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Black	Copper Alloy	Keyed	Female Sockets Plug	Glass Filled Nylon Polyamide (PA)	Unshielded	Plastic				0.394 in	8 mm	10 mm	0.315 in
Amphenol LTW ACD-14BFFC-LL7SP0	Crimp	Glass Filled Nylon Polyamide (PA)	250 VDC	Free Hanging (In-Line)	Polyamide (PA) Nylon Glass Filled	UL94 V-0	C	14	Gold	Backshell	5 A	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Black	Copper Alloy	Keyed	Female Sockets Plug	Glass Filled Nylon Polyamide (PA)	Unshielded	Plastic				0.315 in	6 mm	8 mm	0.236 in
Amphenol LTW ACD-14BFFC-LL7LP0	Crimp	Glass Filled Nylon Polyamide (PA)	250 VDC	Free Hanging (In-Line)	Polyamide (PA) Nylon Glass Filled	UL94 V-0	C	14	Gold	Backshell	5 A	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Black	Copper Alloy	Keyed	Female Sockets Plug	Glass Filled Nylon Polyamide (PA)	Unshielded	Plastic		10 mm 12 mm	0.394 in 0.472 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.93
		10	$ 7.03
		25	$ 6.76
		50	$ 6.49
		100	$ 6.35

Description

General part information

ACD-14BFFC Series

14 (Data) Position Circular Connector Plug, Female Sockets Crimp
