STA461C

Active

Sanken Electric USA Inc.

TRANS 2NPN 70V 6A 10-SIP

Search across all available documentation for this part.

Active

Sanken Electric USA Inc.

TRANS 2NPN 70V 6A 10-SIP

Technical Specifications

Parameters and characteristics for this part

Specification	STA461C

Current - Collector (Ic) (Max) [Max]	6 A
Current - Collector Cutoff (Max) [Max]	10 µA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	400 hFE
Mounting Type	Through Hole
Operating Temperature	150 °C

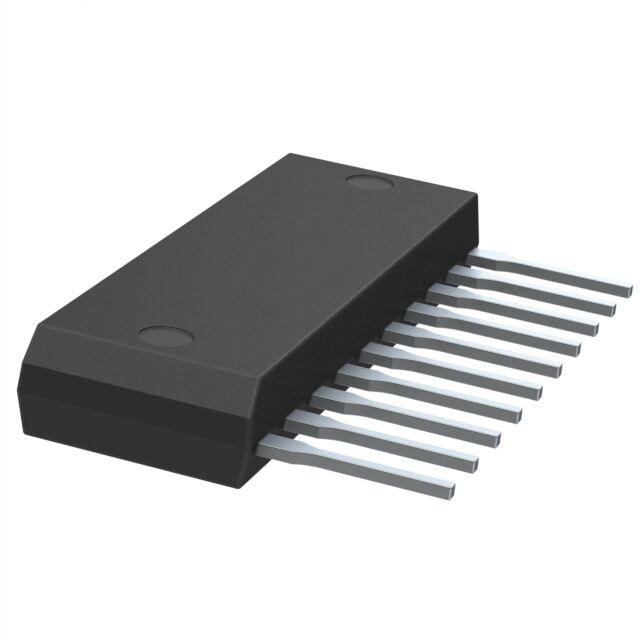

Package / Case	10-SIP
Power - Max [Max]	3.2 W
Supplier Device Package	10-SIP
Transistor Type	2 NPN
Vce Saturation (Max) @ Ib, Ic	150 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	70 V

Part	Transistor Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature	Current - Collector (Ic) (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Power - Max [Max]	Supplier Device Package	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Vce Saturation (Max) @ Ib, Ic	Package / Case	Mounting Type
Sanken Electric USA Inc. STA461C	2 NPN	70 V	150 °C	6 A	10 µA	3.2 W	10-SIP	400 hFE	150 mV	10-SIP	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3300	$ 3.40

General part information

Bipolar (BJT) Transistor Array 2 NPN 70V 6A 3.2W Through Hole 10-SIP
