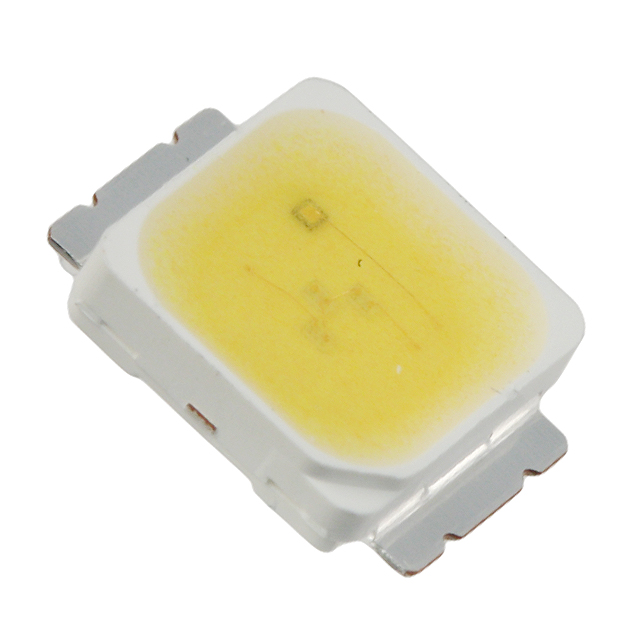

MX3SWT-A1-0000-000BDZ

Obsolete

Cree LED

LED XLAMP COOL WHITE 5000K SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MX3SWT-A1-0000-000BDZ

Obsolete

Cree LED

LED XLAMP COOL WHITE 5000K SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MX3SWT-A1-0000-000BDZ

CCT (K)	5000 K
Color	Cool, White
Current - Max [Max]	175 mA
Current - Test	115 mA
Flux @ 25°C, Current - Test	97 lm
Flux @ 25°C, Current - Test [Max]	100 lm
Flux @ 25°C, Current - Test [Min]	94 lm
Height - Seated (Max) [Max] [z]	1.48 mm
Height - Seated (Max) [Max] [z]	0.058 in
Lumens/Watt @ Current - Test	79 lm/W
Mounting Type	Surface Mount
Package / Case	2-SMD, Gull Wing Exposed Pad
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	5 mm
Size / Dimension [y]	0.197 "
Supplier Device Package	SMD
Thermal Resistance of Package [custom]	11 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	10.7 V

MX3SWT Series

...

Part	Viewing Angle	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Supplier Device Package	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Test	Mounting Type	Color	Flux @ 25°C, Current - Test	Current - Max [Max]	Thermal Resistance of Package [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	CCT (K)	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test [Max]	CRI (Color Rendering Index)
Cree LED MX3SWT-A1-R250-000DF4	120 °	10.7 V	90 lm/W	SMD	2-SMD Gull Wing Exposed Pad	0.197 in	5 mm	0.197 "	5 mm	115 mA	Surface Mount	Neutral White	111 lm	175 mA	11 °C/W	1.48 mm	0.058 in	4750 K
Cree LED MX3SWT-A1-R250-000DA2	120 °	10.7 V	90 lm/W	SMD	2-SMD Gull Wing Exposed Pad	0.197 in	5 mm	0.197 "	5 mm	115 mA	Surface Mount	Neutral White	111 lm	175 mA	11 °C/W	1.48 mm	0.058 in	4750 K
Cree LED MX3SWT-A1-R250-000D50	120 °	10.7 V	90 lm/W	SMD	2-SMD Gull Wing Exposed Pad	0.197 in	5 mm	0.197 "	5 mm	115 mA	Surface Mount	Cool White	111 lm	175 mA	11 °C/W	1.48 mm	0.058 in	6000 K
Cree LED MX3SWT-A1-R250-000BB1	120 °	10.7 V	79 lm/W	SMD	2-SMD Gull Wing Exposed Pad	0.197 in	5 mm	0.197 "	5 mm	115 mA	Surface Mount	White	97 lm	175 mA	11 °C/W	1.48 mm	0.058 in		94 lm	100 lm
Cree LED MX3SWT-A1-0000-000BDZ	120 °	10.7 V	79 lm/W	SMD	2-SMD Gull Wing Exposed Pad	0.197 in	5 mm	0.197 "	5 mm	115 mA	Surface Mount	Cool White	97 lm	175 mA	11 °C/W	1.48 mm	0.058 in	5000 K	94 lm	100 lm
Cree LED MX3SWT-A1-0000-000AA7	120 °	10.7 V	74 lm/W	SMD	2-SMD Gull Wing Exposed Pad	0.197 in	5 mm	0.197 "	5 mm	115 mA	Surface Mount	Warm White	91 lm	175 mA	11 °C/W	1.48 mm	0.058 in	3250 K	87 lm	94 lm	80
Cree LED MX3SWT-A1-0000-0008A6	120 °	10.7 V	63 lm/W	SMD	2-SMD Gull Wing Exposed Pad	0.197 in	5 mm	0.197 "	5 mm	115 mA	Surface Mount	Warm White	77 lm	175 mA	11 °C/W	1.48 mm	0.058 in	3500 K	74 lm	81 lm	80
Cree LED MX3SWT-A1-R250-000DA1	120 °	10.7 V	90 lm/W	SMD	2-SMD Gull Wing Exposed Pad	0.197 in	5 mm	0.197 "	5 mm	115 mA	Surface Mount	Cool White	111 lm	175 mA	11 °C/W	1.48 mm	0.058 in	5000 K
Cree LED MX3SWT-A1-0000-0009A9	120 °	10.7 V	68 lm/W	SMD	2-SMD Gull Wing Exposed Pad	0.197 in	5 mm	0.197 "	5 mm	115 mA	Surface Mount	Warm White	84 lm	175 mA	11 °C/W	1.48 mm	0.058 in	2850 K			80
Cree LED MX3SWT-A1-R250-0009F6	120 °	10.7 V	68 lm/W	SMD	2-SMD Gull Wing Exposed Pad	0.197 in	5 mm	0.197 "	5 mm	115 mA	Surface Mount	Warm White	84 lm	175 mA	11 °C/W	1.48 mm	0.058 in	3700 K			80

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MX3SWT Series

LED Lighting XLamp® MX-3S White, Cool 5000K 10.7V 115mA 120° 2-SMD, Gull Wing Exposed Pad
