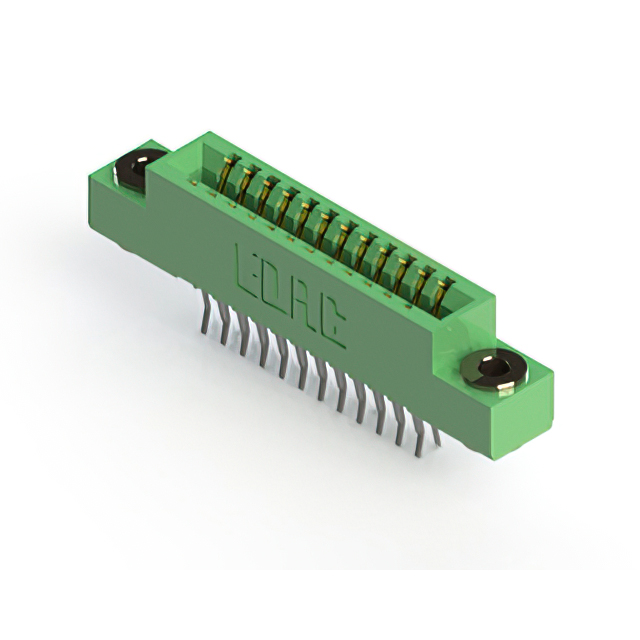

341-024-560-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 24POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
341-024-560-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 24POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 341-024-560-203 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Extender |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 24 |
| Number of Positions/Bay/Row [custom] | 12 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
341-024 Series
| Part | Contact Type | Number of Rows | Material - Insulation | Read Out | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Gender | Contact Finish | Color | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Termination | Card Type | Mounting Type | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Semi Bellows | 1 | Polyester Thermoplastic | Single | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Female | Gold | Green | 24 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Copper Alloy | -40 °C | 105 ░C | 24 | Solder | Non Specified - Single Edge | Through Hole | 1 | 10 Áin | 0.25 Ám | |
EDAC Inc. | Semi Bellows | 2 | Polyester Thermoplastic | Dual | Female | Gold | Green | 12 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Copper Alloy | -40 °C | 105 ░C | 24 | Solder | Non Specified - Dual Edge | Through Hole | 2 | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | Semi Bellows | 2 | Polyester Thermoplastic | Dual | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Female | Gold | Green | 12 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Copper Alloy | -40 °C | 105 ░C | 24 | Solder | Non Specified - Dual Edge | Through Hole | 2 | 10 Áin | 0.25 Ám | Card Extender |
EDAC Inc. | Semi Bellows | 2 | Polyester Thermoplastic | Dual | Female | Gold | Green | 12 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Copper Alloy | -40 °C | 105 ░C | 24 | Solder | Non Specified - Dual Edge | Through Hole | 2 | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | Semi Bellows | 1 | Diallyl Phthalate (DAP) | Single | Female | Gold | Green | 24 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Copper Alloy | -40 °C | 105 ░C | 24 | Solder Eyelet(s) | Non Specified - Single Edge | Through Hole | 1 | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | Semi Bellows | 2 | Polyester Thermoplastic | Dual | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Female | Gold | Green | 12 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Copper Alloy | -40 °C | 105 ░C | 24 | Solder | Non Specified - Dual Edge | Through Hole | 2 | 10 Áin | 0.25 Ám | |
EDAC Inc. | Semi Bellows | 2 | Diallyl Phthalate (DAP) | Dual | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Female | Gold | Green | 12 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Copper Alloy | -40 °C | 105 ░C | 24 | Solder Eyelet(s) | Non Specified - Dual Edge | Through Hole | 2 | 10 Áin | 0.25 Ám | |
EDAC Inc. | Semi Bellows | 2 | Polyester Thermoplastic | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Female | Gold | Green | 12 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Copper Alloy | -40 °C | 105 ░C | 24 | Solder | Non Specified - Dual Edge | Through Hole | 2 | 10 Áin | 0.25 Ám | Card Extender | ||
EDAC Inc. | Semi Bellows | 2 | Polyester Thermoplastic | Dual | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | Female | Gold | Green | 12 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Copper Alloy | -40 °C | 105 ░C | 24 | Solder | Non Specified - Dual Edge | Through Hole | 2 | 10 Áin | 0.25 Ám | Card Extender |
EDAC Inc. | Semi Bellows | 2 | Polyester Thermoplastic | Dual | Flush Mount M3 Threaded Insert Top Opening | Female | Gold | Green | 12 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Copper Alloy | -40 °C | 105 ░C | 24 | Solder | Non Specified - Dual Edge | Board Edge Straddle Mount | 2 | 10 Áin | 0.25 Ám | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 13.93 | |
Description
General part information
341-024 Series
24 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
