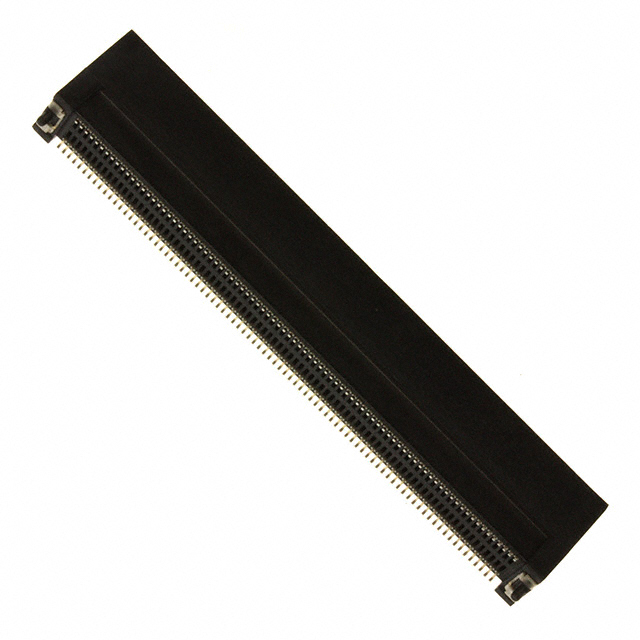

10058835-1000LF

Active

Amphenol ICC (FCI)

CONN MICROTCA FMALE 170POS 0.029

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN MICROTCA FMALE 170POS 0.029

Technical Specifications

Parameters and characteristics for this part

Specification	10058835-1000LF

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	MicroTCA™
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Features	Board Guide
Gender	Female
Mounting Type	Surface Mount
Number of Positions	170
Number of Positions/Bay/Row [custom]	85
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.75 mm
Pitch [x]	0.029 in
Read Out	Dual
Termination	Solder

Part	Operating Temperature [Max]	Operating Temperature [Min]	Color	Features	Card Thickness	Card Thickness	Read Out	Contact Finish	Mounting Type	Number of Positions/Bay/Row [custom]	Termination	Pitch [x]	Pitch [x]	Gender	Number of Rows	Contact Material	Card Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation
Amphenol ICC (FCI) 10058835-1000LF	85 °C	-40 °C	Black	Board Guide	0.062 in	1.57 mm	Dual	Gold	Surface Mount	85	Solder	0.75 mm	0.029 in	Female	2	Copper Alloy	MicroTCA™	170	0.76 Ám	30 Áin
Amphenol ICC (FCI) 10058835-1002LF			Black	Board Guide			Dual	Gold	Surface Mount	85	Solder	0.75 mm	0.029 in	Female	2	Copper Alloy	MicroTCA™	170	0.76 Ám	30 Áin	Thermoplastic Glass Filled
Amphenol ICC (FCI) 10058835-1003LF			Black	Board Guide			Dual	Gold	Surface Mount	85	Solder	0.75 mm	0.029 in	Female	2	Copper Alloy	MicroTCA™	170	0.76 Ám	30 Áin	Thermoplastic Glass Filled
