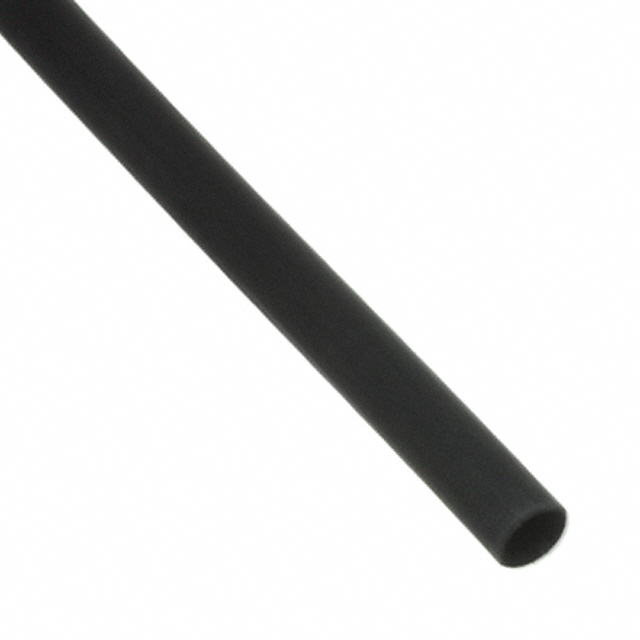

Q2-F-3/32-01-QB48IN-25

Active

Qualtek

HEATSHRINK 0.093" X 4' BLK 1=1PC

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK 0.093" X 4' BLK 1=1PC

Technical Specifications

Parameters and characteristics for this part

Specification	Q2-F-3/32-01-QB48IN-25

Color	Black
Features	Flame Retardant
Inner Diameter - Recovered [diameter]	0.049 in
Inner Diameter - Recovered [diameter]	1.24 mm
Inner Diameter - Supplied [diameter]	0.093 in
Inner Diameter - Supplied [diameter]	2.36 mm
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.019 "
Recovered Wall Thickness	0.48 mm
Shelf Life	144 Months
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Shrinkage Ratio	Shrink Temperature	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Material	Color	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Type	Length [x]	Length [x]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Shelf Life	Recovered Wall Thickness	Recovered Wall Thickness	Spool Size	Spool Size	Length [x]	Length	Length	Length	Length	Length
Qualtek Q2-F-3/32-01-QB48IN-25	2 to 1	70 °C	-50 °F -10 °C	40 °C	Polyolefin (PO)	Black	0.093 in	2.36 mm	Tubing Flexible	1.22 m	4 ft	0.049 in	1.24 mm	135 °C	-55 °C	Flame Retardant	144 Months	0.019 "	0.48 mm
Qualtek Q2-F-3/32-01-SS500FT	2 to 1	70 °C	-50 °F -10 °C	40 °C	Polyolefin (PO)	Black	0.093 in	2.36 mm	Tubing Flexible	101.6 mm 152.4 m	0.333 ft 500 '	0.049 in	1.24 mm	135 °C	-55 °C	Flame Retardant	144 Months	0.019 "	0.48 mm	500 '	152.4 m	4 "	38.1 mm 76.2 mm 152.4 mm	1.5 " 3 " 6 "	0.5 '	Enter Number of Feet in Order Quantity	0.125 ' 0.25 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 0.093" (2.36mm) 2 to 1 Black 4.00' (1.22m)
