346-023-540-658
ActiveEDAC Inc.

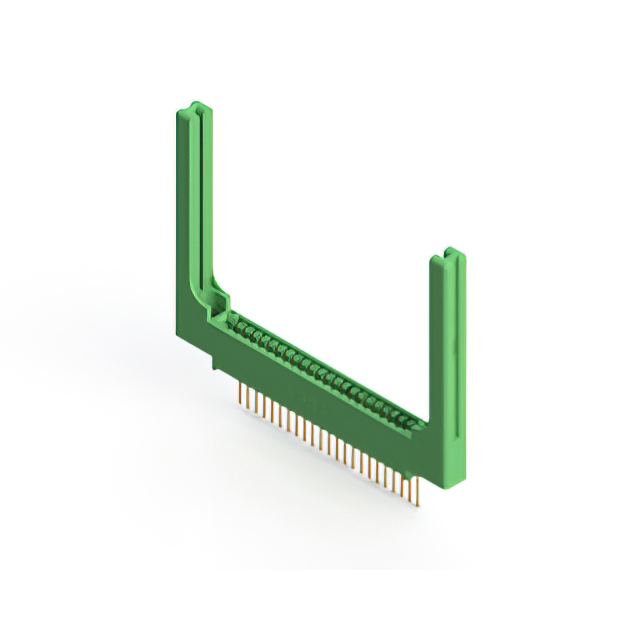

CONN EDGE SGL FMALE 23POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
346-023-540-658
ActiveEDAC Inc.
CONN EDGE SGL FMALE 23POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-023-540-658 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 23 |
| Number of Positions/Bay/Row [custom] | 23 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
346-023 Series
| Part | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Contact Material | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Termination Rows | Number of Positions | Contact Finish | Number of Rows | Termination | Contact Type | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Material - Insulation | Card Type | Flange Feature | Features | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | 23 | 1 | 23 | Gold | 1 | Wire Wrap | Cantilever | Female | -40 °C | 105 ░C | Single | Polyester Thermoplastic | Non Specified - Single Edge | ||||||
EDAC Inc. | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | 23 | 1 | 23 | Gold | 1 | Wire Wrap | Cantilever | Female | -40 °C | 105 ░C | Single | Polyester Thermoplastic | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||||
EDAC Inc. | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | 23 | 1 | 23 | Gold | 1 | Wire Wrap | Cantilever | Female | -40 °C | 105 ░C | Single | Polyester Thermoplastic | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||||
EDAC Inc. | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | 23 | 1 | 23 | Gold | 1 | Wire Wrap | Cantilever | Female | -40 °C | 105 ░C | Single | Polyester Thermoplastic | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||||
EDAC Inc. | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | 23 | 1 | 23 | Gold | 1 | Solder | Cantilever | Female | -40 °C | 105 ░C | Single | Polyester Thermoplastic | Non Specified - Single Edge | Floating Bobbin Flush Mount | 0.116 in | 2.95 mm | |||
EDAC Inc. | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Copper Alloy | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | 23 | 1 | 23 | Gold | 1 | Solder Wire Wrap | Cantilever | Female | -40 °C | 105 ░C | Single | Polyester Thermoplastic | Non Specified - Single Edge | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | |||
EDAC Inc. | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | 23 | 1 | 23 | Gold | 1 | Solder | Cantilever | Female | -40 °C | 105 ░C | Single | Polyester Thermoplastic | Non Specified - Single Edge | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | |||
EDAC Inc. | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Copper Alloy | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | 23 | 1 | 23 | Gold | 1 | Solder Wire Wrap | Cantilever | Female | -40 °C | 105 ░C | Single | Polyester Thermoplastic | Non Specified - Single Edge | Top Mount Opening Unthreaded | 0.156 in | 3.96 mm | |||
EDAC Inc. | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | 23 | 1 | 23 | Gold | 1 | Solder | Cantilever | Female | -40 °C | 105 ░C | Single | Polyester Thermoplastic | Non Specified - Single Edge | M3 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | 23 | 1 | 23 | Gold | 1 | Wire Wrap | Cantilever | Female | -40 °C | 105 ░C | Single | Polyester Thermoplastic | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 10.72 | |
Description
General part information
346-023 Series
23 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
