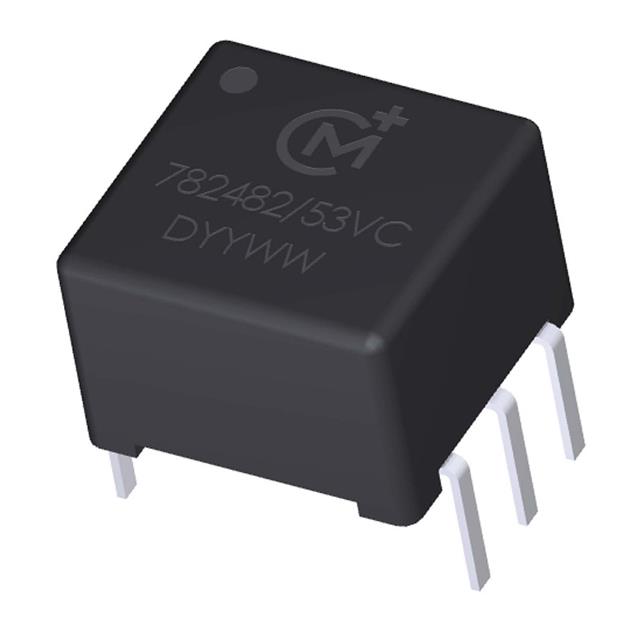

782482/53VC

Active

Murata Power Solutions Inc.

SMPS TRANSFORMER, TOROIDAL CONVERTER, 4 KV, 5V

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

SMPS TRANSFORMER, TOROIDAL CONVERTER, 4 KV, 5V

Technical Specifications

Parameters and characteristics for this part

Specification	782482/53VC

Height - Seated (Max)	6.35 mm
Height - Seated (Max) [Max]	0.25 in
Inductance	260 µH
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	9.14 mm
Size / Dimension [x]	0.36 "
Size / Dimension [y]	9.77 mm
Size / Dimension [y]	0.385 "
Transformer Type	Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary [x]	1.14 CT
Turns Ratio - Primary:Secondary [y]	1
Weight	0.04 oz
Weight	1.14 g

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Transformer Type	Inductance	Mounting Type	Weight	Weight	Height - Seated (Max)	Height - Seated (Max) [Max]	Turns Ratio - Primary:Secondary [y]	Turns Ratio - Primary:Secondary [x]
Murata Power Solutions Inc. 782482/53VC	9.77 mm	9.14 mm	0.36 "	0.385 "	85 °C	-40 °C	Isolation and Data Interface (Encapsulated)	260 µH	Through Hole	0.04 oz	1.14 g	6.35 mm	0.25 in	1	1.14 CT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

260µH Isolation and Data Interface (Encapsulated) Pulse Transformer 1.14CT:1CT Through Hole
