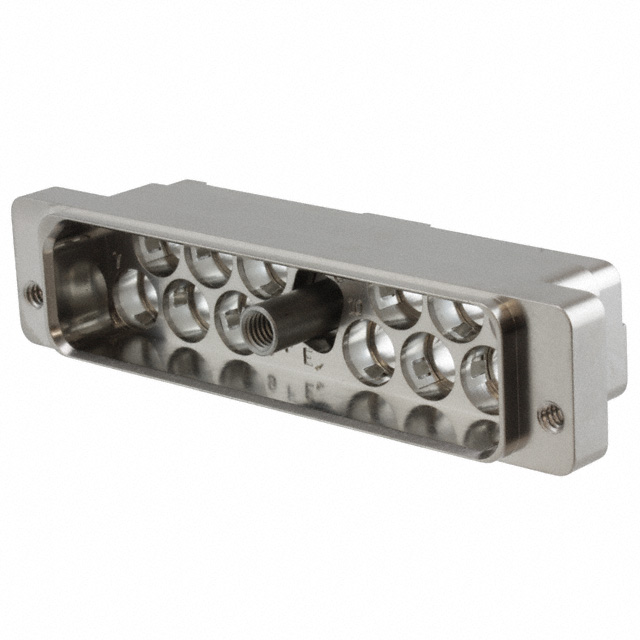

1604798-2

Active

TE Connectivity Aerospace, Defense and Marine

CONN RCPT HSG 12POS 9.30MM

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN RCPT HSG 12POS 9.30MM

Technical Specifications

Parameters and characteristics for this part

Specification	1604798-2

Connector Type	Receptacle
Contact Termination	Solder
Contact Type	Quadrax
Features	Jackpost
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Note	Contacts Not Included
Number of Positions	12
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	9.3 mm
Pitch [x]	0.366 in
Row Spacing	9.3 mm
Row Spacing	0.366 in

Part	Number of Rows	Pitch [x]	Pitch [x]	Contact Termination	Note	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Number of Positions	Insulation Material	Row Spacing	Row Spacing	Contact Type	Features
TE Connectivity Aerospace, Defense and Marine 1604798-2	2	9.3 mm	0.366 in	Solder	Contacts Not Included	125 °C	-65 ░C	Receptacle	12	Polyamide (PA66) Nylon 6/6 Glass Filled	9.3 mm	0.366 in	Quadrax	Jackpost
TE Connectivity Aerospace, Defense and Marine 1604798-1					Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Rectangular Connectors - Housings Receptacle 0.366" (9.30mm)
