SRFWG018-200
ActiveAntenova

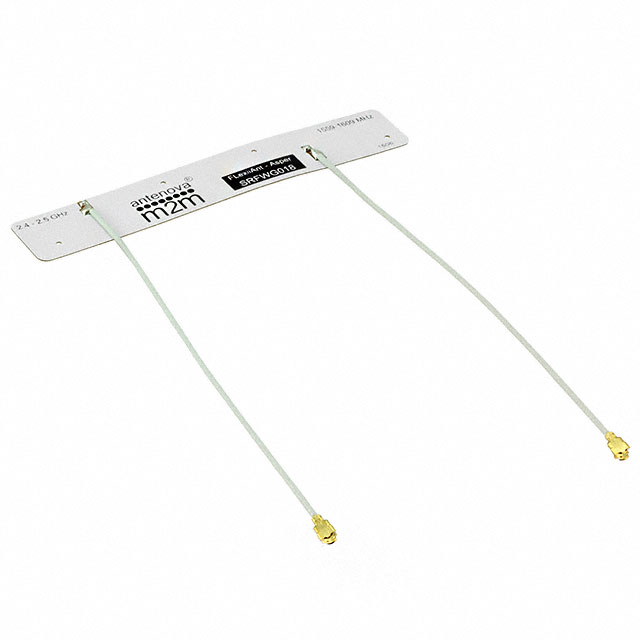

RF ANT 1.561/1.575GHZ FLAT 200MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SRFWG018-200
ActiveAntenova
RF ANT 1.561/1.575GHZ FLAT 200MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SRFWG018-200 |
|---|---|
| Antenna Type | Flat Patch |
| Applications | GNSS, Bluetooth, Wi-Fi |
| Features | Cable |
| Features | 200 mm |
| Frequency Group [Max] | 2 GHz, 3 GHz |
| Frequency Group [Min] | 2 GHz, 1 GHz |
| Frequency Range [Max] | 1.609 GHz, 2.5 GHz |
| Frequency Range [Min] | 2.4 GHz, 1.559 GHz |
| Gain | 5.6 dBi, 4.25 dBic |
| Height (Max) | 0.15 mm |
| Height (Max) [Max] | 0.006 in |
| Mounting Type | Adhesive |
| Number of Bands | 2 |
| Return Loss | -18.4 dB, -14.5 dB |
| RF Family/Standard | WiFi, Bluetooth, Navigation |
| Termination | U.FL (UMCC), IPEX MHF1 (2) |
| VSWR | 1.4, 1.3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 2.98 | |
Description
General part information
SRFWG018 Series
RF ANTENNA Bluetooth, GNSS, Wi-Fi Flat Patch U.FL (UMCC), IPEX MHF1 (2) Adhesive
