DD21.0114.1111

Active

SCHURTER Inc.

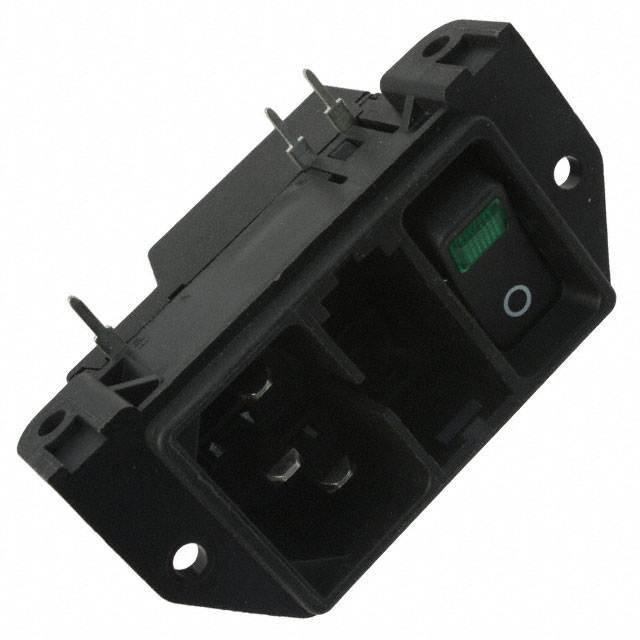

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	DD21.0114.1111

Accomodates a Fuse	True
Approval Agency	ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Features	Terminating Cover
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Drawer Sold Separate
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange, Through Hole, Right Angle
Panel Thickness	0.138 in
Panel Thickness	3.5 mm
Switch Features	Illuminated, Switch On-Off
Termination	Solder, Quick Connect - 0.189" (4.8mm)
Voltage Rating - Appliance Inlet	250 VAC

Part	Approval Agency	Voltage Rating - Appliance Inlet	Panel Thickness	Panel Thickness	Current Rating - Appliance Inlet	Accomodates a Fuse	Switch Features	Ingress Protection	Material Flammability Rating	Features	Fuse Holder, Drawer	Filter Type	Connector Style	Mounting Type	Connector Type	Termination
SCHURTER Inc. DD21.0114.1111	cULus ENEC	250 VAC	0.138 in	3.5 mm	10 A		Illuminated Switch On-Off	IP40	UL94 V-0	Terminating Cover	Drawer Sold Separate	Unfiltered - Commercial	IEC 320-C14	Panel Mount Flange Through Hole Right Angle	Receptacle Male Blades - Module	Solder Quick Connect - 0.189" (4.8mm)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
