KTPS50-1533DT-3P-VI-C-P1

Active

Volgen + Furuno

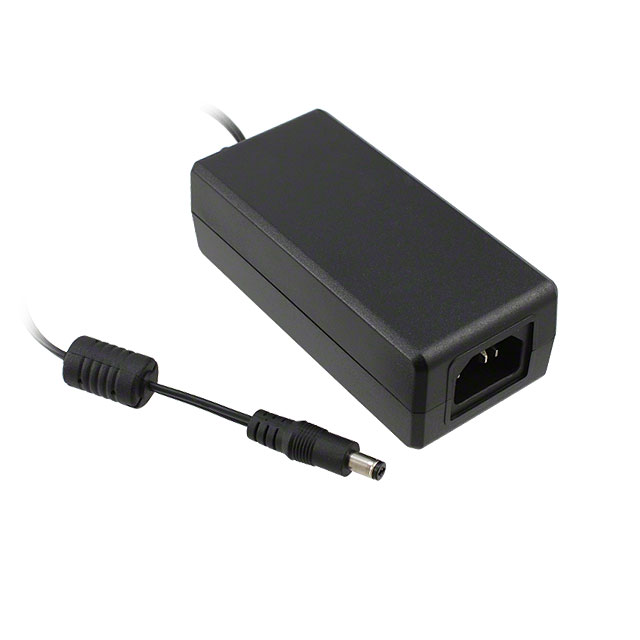

AC/DC DESKTOP ADAPTER 15V 50W

Search across all available documentation for this part.

Active

Volgen + Furuno

AC/DC DESKTOP ADAPTER 15V 50W

Technical Specifications

Parameters and characteristics for this part

Part	Efficiency	Polarization	Input Connector	Output Connector [diameter]	Output Connector [x]	Output Connector	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	Voltage - Input [Max]	Voltage - Input [Min]	Cord Length	Cord Length	Approval Agency	Form	Standard Number	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Region Utilized	Current - Output (Max) [Max]	Applications	Voltage - Output	Power (Watts)
Volgen + Furuno KTPS50-1533DT-3P-VI-C-P1	Level VI	Positive Center	IEC 320-C14	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	40 °C	0 °C	Cord	240 VAC	100 VAC	1.5 m	59 in	IEC	Desktop (Class I)	60950-1	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	International	3.34 A	ITE (Commercial)	15 VDC	50 W
Volgen + Furuno KTPS50-2421DT-3P-VI-C-P1	Level VI	Positive Center	IEC 320-C14	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	40 °C	0 °C	Cord	240 VAC	100 VAC	1.5 m	59 in	IEC	Desktop (Class I)	60950-1	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	International	2.1 A	ITE (Commercial)	24 V	50 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15V 50 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
