0395350006

Active

Molex

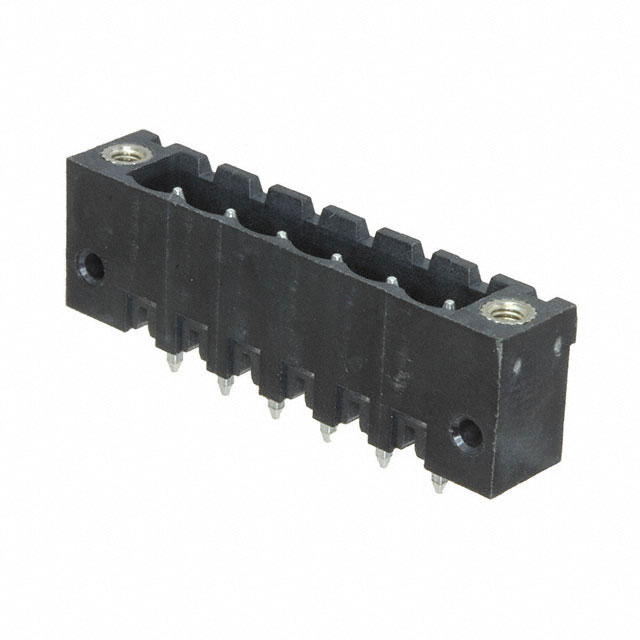

TERM BLOCK HDR 6POS VERT 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0395350006

Active

Molex

TERM BLOCK HDR 6POS VERT 5.08MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0395350006

Color	Black
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	0.15 in
Contact Tail Length	3.81 mm
Features	Mating Flange
Header Orientation	Vertical
Insulation Height	0.472 in
Insulation Height	12 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	6
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	6
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

039535 Series

...

Part	Contact Material	Mounting Type	Termination Style	Pitch [x]	Pitch [x]	Contact Mating Finish	Features	Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Number of Levels	Contact Tail Length	Contact Tail Length	Voltage - UL	Insulation Height	Insulation Height	Header Orientation	Material Flammability Rating	Positions Per Level	Color	Housing Material
Molex 0395350509	Brass	Through Hole	Solder	0.2 in	5.08 mm	Gold	Mating Flange	Header Male Pins Shrouded (4 Side)	-40 °C	115 °C	9	1	0.15 in	3.81 mm	300 V	0.472 in	12 mm	Vertical	UL94 V-0	9	Black
Molex 0395350006	Brass	Through Hole	Solder	0.2 in	5.08 mm	Tin	Mating Flange	Header Male Pins Shrouded (4 Side)	-40 °C	115 °C	6	1	0.15 in	3.81 mm	300 V	0.472 in	12 mm	Vertical	UL94 V-0	6	Black
Molex 0395350524	Brass	Through Hole	Solder	0.2 in	5.08 mm	Gold	Mating Flange	Header Male Pins Shrouded (4 Side)	-40 °C	115 °C	24	1	0.15 in	3.81 mm	300 V	0.472 in	12 mm	Vertical	UL94 V-0		Black
Molex 0395355504	Brass	Through Hole	Solder	0.2 in	5.08 mm	Gold	Mating Flange	Header Male Pins Shrouded (4 Side)	-40 °C	115 °C	4	1	0.15 in	3.81 mm	300 V	0.472 in	12 mm	Vertical	UL94 V-0	4	Green
Molex 0395350508	Brass	Through Hole	Solder	0.2 in	5.08 mm	Gold	Mating Flange	Header Male Pins Shrouded (4 Side)	-40 °C	115 °C	8	1	0.15 in	3.81 mm	300 V	0.472 in	12 mm	Vertical	UL94 V-0	8	Black
Molex 0395354004	Brass	Through Hole	Solder	0.2 in	5.08 mm	Tin	Mating Flange	Header Male Pins Shrouded (4 Side)	-40 °C	105 ░C	4	1	0.15 in	3.81 mm	300 V	0.472 in	12 mm	Vertical	UL94 V-0	4	Black	Polyamide (PA46) Nylon 4/6
Molex 0395350502	Brass	Through Hole	Solder	0.2 in	5.08 mm	Gold	Mating Flange	Header Male Pins Shrouded (4 Side)	-40 °C	115 °C	2	1	0.15 in	3.81 mm	300 V	0.472 in	12 mm	Vertical	UL94 V-0	2	Black
Molex 0395354521	Brass	Through Hole	Solder	0.2 in	5.08 mm	Gold	Mating Flange	Header Male Pins Shrouded (4 Side)	-40 °C	105 ░C	21	1	0.15 in	3.81 mm	300 V	0.472 in	12 mm	Vertical	UL94 V-0	21	Black	Polyamide (PA46) Nylon 4/6
Molex 0395355520	Brass	Through Hole	Solder	0.2 in	5.08 mm	Gold	Mating Flange	Header Male Pins Shrouded (4 Side)	-40 °C	115 °C	20	1	0.15 in	3.81 mm	300 V	0.472 in	12 mm	Vertical	UL94 V-0	20	Green
Molex 0395350019	Brass	Through Hole	Solder	0.2 in	5.08 mm	Tin	Mating Flange	Header Male Pins Shrouded (4 Side)	-40 °C	115 °C	19	1	0.15 in	3.81 mm	300 V	0.472 in	12 mm	Vertical	UL94 V-0	19	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.66
		10	$ 1.25
		25	$ 1.16
		50	$ 1.04
		100	$ 1.02
		250	$ 0.90

Description

General part information

039535 Series

6 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole
