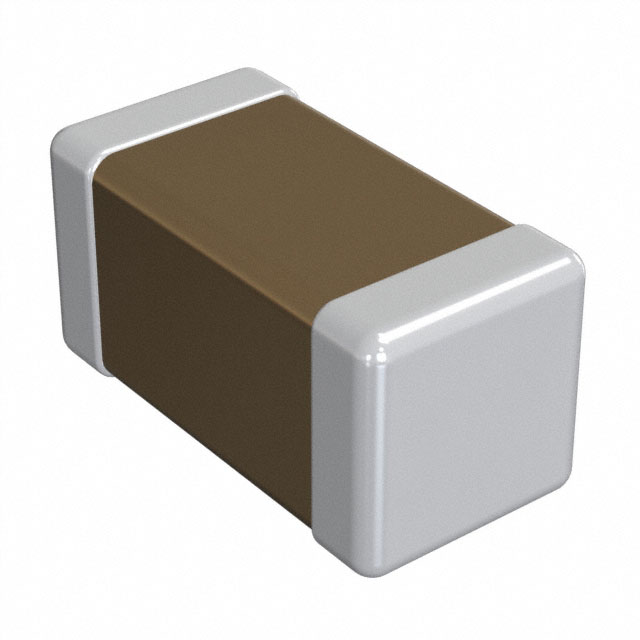

GCM188R71H224KA64J

Active

Murata Power Solutions Inc.

CAP CER 0.22UF 50V X7R 0603

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GCM188R71H224KA64J

Active

Murata Power Solutions Inc.

CAP CER 0.22UF 50V X7R 0603

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GCM188R71H224KA64J

Applications	Automotive
Capacitance	0.22 µF
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0603 (1608 Metric)
Ratings	AEC-Q200
Size / Dimension [x]	0.063 in
Size / Dimension [x]	1.6 mm
Size / Dimension [y]	0.8 mm
Size / Dimension [y]	0.031 in
Temperature Coefficient	X7R
Thickness (Max) [Max]	0.9 mm
Thickness (Max) [Max]	0.035 in
Tolerance	10 %
Voltage - Rated	50 VDC

GCM188R71H Series

Part	Tolerance	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Capacitance	Applications	Ratings	Temperature Coefficient	Voltage - Rated	Thickness (Max) [Max]	Thickness (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
Murata Power Solutions Inc. GCM188R71H563MA57D	20 %	0603 (1608 Metric)	0.8 mm	0.063 in	1.6 mm	0.031 in	0.056 µF	Automotive	AEC-Q200	X7R	50 VDC	0.9 mm	0.035 in	-55 °C	125 °C	MLCC Surface Mount
Murata Power Solutions Inc. GCM188R71H823MA57J	20 %	0603 (1608 Metric)	0.8 mm	0.063 in	1.6 mm	0.031 in	0.082 µF	Automotive	AEC-Q200	X7R	50 VDC	0.9 mm	0.035 in	-55 °C	125 °C	MLCC Surface Mount
Murata Power Solutions Inc. GCM188R71H224KA64J	10 %	0603 (1608 Metric)	0.8 mm	0.063 in	1.6 mm	0.031 in	0.22 µF	Automotive	AEC-Q200	X7R	50 VDC	0.9 mm	0.035 in	-55 °C	125 °C	MLCC Surface Mount
Murata Power Solutions Inc. GCM188R71H393JA55J	5 %	0603 (1608 Metric)	0.8 mm	0.063 in	1.6 mm	0.031 in	0.039 µF	Automotive	AEC-Q200	X7R	50 VDC	0.9 mm	0.035 in	-55 °C	125 °C	MLCC Surface Mount
Murata Power Solutions Inc. GCM188R71H472JA37D	5 %	0603 (1608 Metric)	0.8 mm	0.063 in	1.6 mm	0.031 in	4700 pF	Automotive	AEC-Q200	X7R	50 VDC	0.9 mm	0.035 in	-55 °C	125 °C	MLCC Surface Mount
Murata Power Solutions Inc. GCM188R71H822KA37D	10 %	0603 (1608 Metric)	0.8 mm	0.063 in	1.6 mm	0.031 in		Automotive	AEC-Q200	X7R	50 VDC	0.9 mm	0.035 in	-55 °C	125 °C	MLCC Surface Mount
Murata Power Solutions Inc. GCM188R71H152JA37D	5 %	0603 (1608 Metric)	0.8 mm	0.063 in	1.6 mm	0.031 in	1500 pF	Automotive	AEC-Q200	X7R	50 VDC	0.9 mm	0.035 in	-55 °C	125 °C	MLCC Surface Mount
Murata Power Solutions Inc. GCM188R71H152MA37J	20 %	0603 (1608 Metric)	0.8 mm	0.063 in	1.6 mm	0.031 in	1500 pF	Automotive	AEC-Q200	X7R	50 VDC	0.9 mm	0.035 in	-55 °C	125 °C	MLCC Surface Mount
Murata Power Solutions Inc. GCM188R71H183KA37J	10 %	0603 (1608 Metric)	0.8 mm	0.063 in	1.6 mm	0.031 in	0.018 µF	Automotive	AEC-Q200	X7R	50 VDC	0.9 mm	0.035 in	-55 °C	125 °C	MLCC Surface Mount
Murata Power Solutions Inc. GCM188R71H154KA64D	10 %	0603 (1608 Metric)	0.8 mm	0.063 in	1.6 mm	0.031 in	0.15 ÁF	Automotive	AEC-Q200	X7R	50 VDC	0.9 mm	0.035 in	-55 °C	125 °C	MLCC Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.20
		10	$ 0.14
		50	$ 0.08
		100	$ 0.06
		500	$ 0.05
		1000	$ 0.04
		2500	$ 0.04
		5000	$ 0.03
	Digi-Reel®	1	$ 0.20
		10	$ 0.14
		50	$ 0.08
		100	$ 0.06
		500	$ 0.05
		1000	$ 0.04
		2500	$ 0.04
		5000	$ 0.03
	Tape & Reel (TR)	10000	$ 0.03
		20000	$ 0.03
		30000	$ 0.03
		50000	$ 0.03
		100000	$ 0.02
		250000	$ 0.02

Description

General part information

GCM188R71H Series

0.22 µF ±10% 50V Ceramic Capacitor X7R 0603 (1608 Metric)

Documents

Technical documentation and resources
