Technical Specifications
Parameters and characteristics for this part
| Specification | CGM-1100-NF-SMM-10 |
|---|---|
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Conversion Type | Between Series |
| Convert From (Adapter End) | SMA Plug, Male Pin |
| Convert To (Adapter End) | Female Socket, N Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 10 GHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.5 dB |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 31.44 | |
| 10 | $ 24.27 | |||
| 25 | $ 22.00 | |||
| 50 | $ 20.46 | |||
| 100 | $ 19.06 | |||
| 250 | $ 17.42 | |||
| 500 | $ 16.32 | |||
Description
General part information
CGM-1100 Series

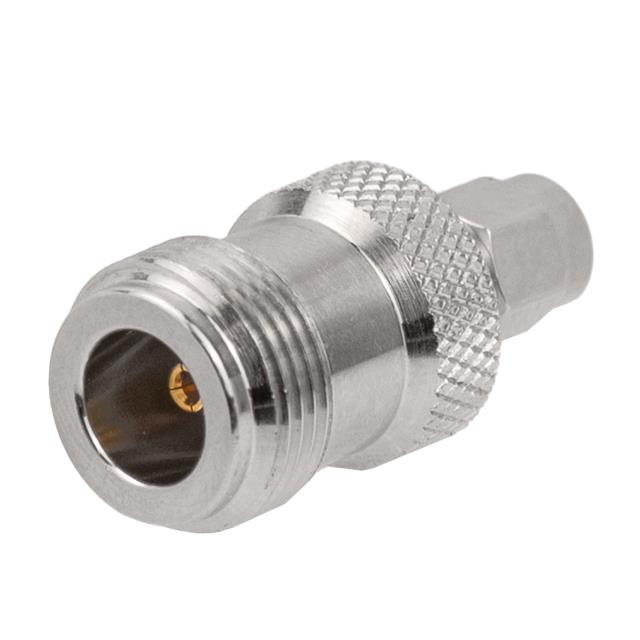

Adapter Coaxial Connector SMA Plug, Male Pin To N Jack, Female Socket 50 Ohms
