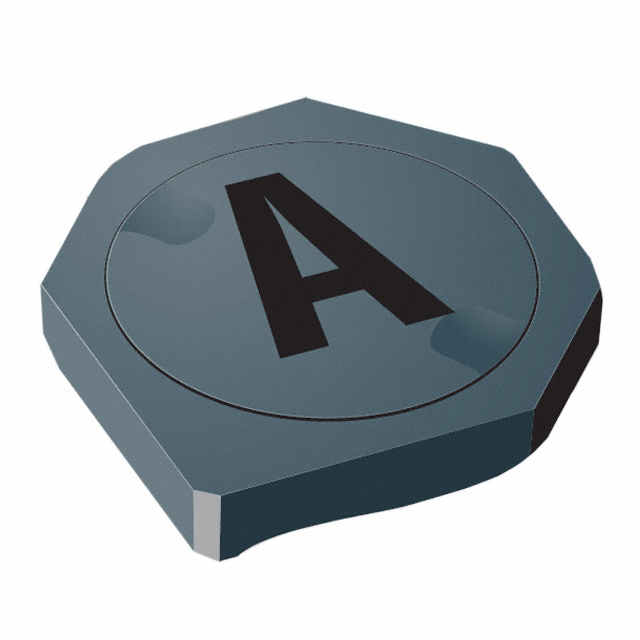

SRU3009-3R3Y
ObsoleteBourns Inc.
FIXED IND 3.3UH 650MA 225MOHM SM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SRU3009-3R3Y
ObsoleteBourns Inc.
FIXED IND 3.3UH 650MA 225MOHM SM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SRU3009-3R3Y |
|---|---|
| Current - Saturation (Isat) | 720 mA |
| Current Rating (Amps) | 650 mA |
| DC Resistance (DCR) | 225 mOhm |
| Frequency - Self Resonant | 130 MHz |
| Inductance | 3.3 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Q @ Freq | 7.96 MHz, 8 |
| Shielding | Shielded |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [x] | 0.138 " |
| Size / Dimension [y] | 3.3 mm |
| Size / Dimension [y] | 0.13 in |
| Tolerance | 30 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SRU3009 Series
3.3 µH Shielded Drum Core, Wirewound Inductor 650 mA 225mOhm Max Nonstandard
