19209 010250

Active

Belden Inc.

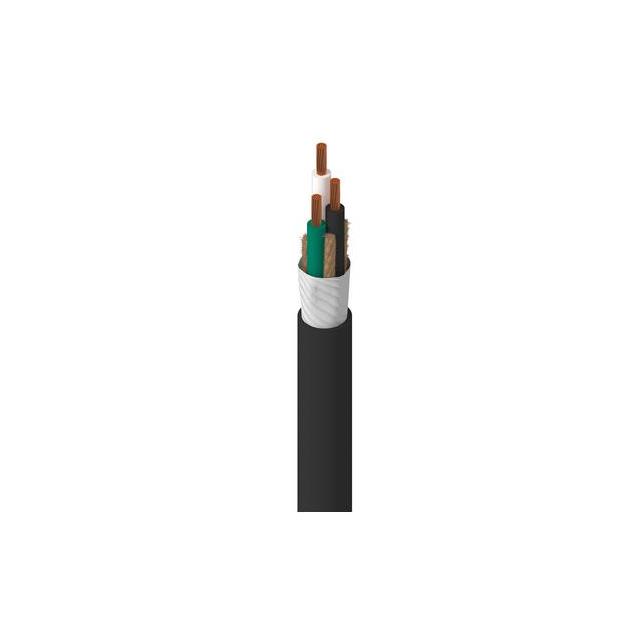

CABLE 3COND 18AWG BLACK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 18AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	19209 010250

Cable Type	Multi-Conductor
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Bare
Conductor Strand	34 AWG, 42
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	9.91 mm
Jacket (Insulation) Diameter [diameter]	0.39 in
Jacket (Insulation) Material	Rubber
Jacket (Insulation) Thickness	0.075 in
Jacket (Insulation) Thickness	1.905 mm
Jacket Color	Black
Length	3000 "
Length	76.2 m
Number of Conductors	3
Ratings	UL Style SO
Usage	Cord and Cordset
Voltage	600 V
Wire Gauge	18 AWG

Part	Conductor Strand	Jacket Color	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Usage	Conductor Material	Number of Conductors	Cable Type	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Conductor Insulation	Wire Gauge	Features
Belden Inc. 19209 010250	34 AWG 42	Black	3000 "	76.2 m	0.075 in	1.905 mm	600 V	Cord and Cordset	Copper Bare	3	Multi-Conductor	UL Style SO	9.91 mm	0.39 in	Rubber	Ethylene Propylene Terpolymer Rubber (EPDM)	18 AWG	Oil Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	250	$ 7.07

General part information

3 Conductor Multi-Conductor Cable Black 18 AWG 250.0' (76.2m)
