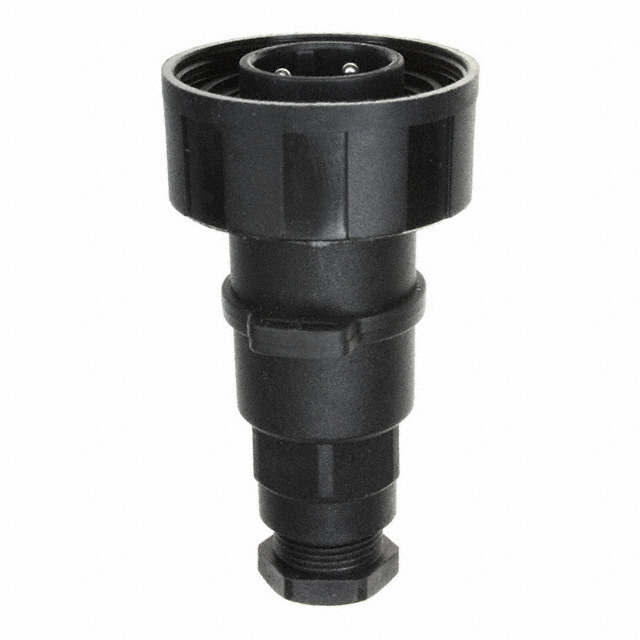

PX0731/P

Active

BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, CABLE MOUNT PLUG, 3 CONTACTS, SCREW PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

PX0731/P

Active

BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, CABLE MOUNT PLUG, 3 CONTACTS, SCREW PIN

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PX0731/P

Backshell Material, Plating	Nylon, Polyamide (PA), Glass Filled
Cable Opening [Max] [custom]	8 mm
Cable Opening [Max] [custom]	0.315 in
Cable Opening [Min] [custom]	6 mm
Cable Opening [Min] [custom]	0.236 in
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Nickel
Contact Material	Brass
Current Rating (Amps)	10 A
Features	Coupling Nut, Backshell
Ingress Protection	IP68, IP69K
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Number of Positions [custom]	3
Number of Positions [custom]	1
Number of Positions [custom]	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shielding	Unshielded
Termination	Screw
Voltage Rating	277 VAC/DC

PX0731 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Orientation	Insert Material	Termination	Voltage Rating	Current Rating (Amps)	Connector Type	Primary Material	Ingress Protection	Contact Material	Shell Material	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Features	Contact Finish - Mating	Color	Material Flammability Rating	Mounting Type	Backshell Material, Plating	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]
BULGIN LIMITED PX0731/P/07	-20 C	70 °C	Unshielded	Keyed	Nylon Polyamide (PA)	Screw	277 VAC/DC	10 A	Male Pins Plug	Plastic	IP68 IP69K	Brass	Glass Filled Nylon Polyamide (PA)	3	1	2	Backshell Coupling Nut	Nickel	Black	UL94 HB	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	0.276 in 0.354 in	7 mm 9 mm
BULGIN LIMITED PX0731/S	-20 C	70 °C	Unshielded	Keyed	Nylon Polyamide (PA)	Screw	277 VAC/DC	10 A	Female Sockets Plug	Plastic	IP68 IP69K	Brass	Glass Filled Nylon Polyamide (PA)	3	1	2	Backshell Coupling Nut	Nickel	Black	UL94 HB	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)			8 mm	6 mm	0.315 in	0.236 in
BULGIN LIMITED PX0731/P	-20 C	70 °C	Unshielded	Keyed	Nylon Polyamide (PA)	Screw	277 VAC/DC	10 A	Male Pins Plug	Plastic	IP68 IP69K	Brass	Glass Filled Nylon Polyamide (PA)	3	1	2	Backshell Coupling Nut	Nickel	Black	UL94 HB	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)			8 mm	6 mm	0.315 in	0.236 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.72
		10	$ 18.14
		25	$ 17.36
		50	$ 16.80
		100	$ 16.24
		250	$ 15.35
		500	$ 14.90
Newark	Each	1	$ 21.83
		10	$ 19.52
		25	$ 18.60
		50	$ 17.68
		100	$ 17.10
		250	$ 16.17
		500	$ 15.83

Description

General part information

PX0731 Series

The PX0731/P from Bulgin is a standard Buccaneer, black colour circular flex cable plug connector with 3 pin contacts. This connector has compact design and easy assembly. No special tools are required for screw termination. It mates with in-line flex or
