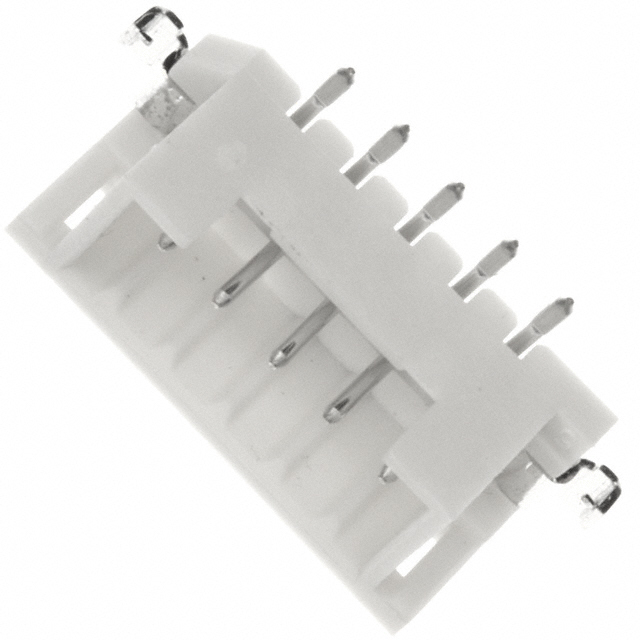

DF3DZ-5P-2V(20)

Obsolete

Hirose Electric USA, Inc.

CONN HEADER SMD 5POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF3DZ-5P-2V(20)

Obsolete

Hirose Electric USA, Inc.

CONN HEADER SMD 5POS 2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF3DZ-5P-2V(20)

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Solder Retention
Insulation Color	Beige
Insulation Height	5.9 mm
Insulation Height	0.232 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

DF3DZ Series

Part	Style	Insulation Color	Features	Pitch - Mating [x]	Pitch - Mating [x]	Contact Material	Number of Positions Loaded	Number of Rows	Shrouding	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Type	Contact Finish - Post	Insulation Height	Insulation Height	Insulation Material	Connector Type	Material Flammability Rating	Fastening Type	Mounting Type	Contact Shape	Contact Finish - Mating	Number of Positions
Hirose Electric USA, Inc. DF3DZ-5P-2V(20)	Board to Board Cable	Beige	Solder Retention	0.079 in	2 mm	Brass	All	1	Shrouded - 4 Wall	Solder	-30 ░C	85 °C	3 A	Male Pin	Tin	5.9 mm	0.232 in	Nylon Polyamide (PA)	Header	UL94 V-0	Push-Pull	Surface Mount	Circular
Hirose Electric USA, Inc. DF3DZ-11P-2V(51)	Board to Board Cable	Beige	Solder Retention	0.079 in	2 mm	Phosphor Bronze	All	1	Shrouded - 4 Wall	Solder	-30 ░C	85 °C	3 A	Male Pin		5.9 mm	0.232 in	Nylon Polyamide (PA)	Header	UL94 V-0	Push-Pull	Surface Mount	Circular	Gold	11
Hirose Electric USA, Inc. DF3DZ-2P-2H(73)	Board to Board Cable	Beige		0.079 in	2 mm	Brass	All	1	Shrouded - 4 Wall	Solder	-55 °C	105 ░C	3 A	Male Pin		5.6 mm	0.22 in	Nylon Polyamide (PA)	Header	UL94 V-0	Push-Pull	Surface Mount Right Angle	Circular		2
Hirose Electric USA, Inc. DF3DZ-8P-2V(51)	Board to Board Cable	Beige	Solder Retention	0.079 in	2 mm	Phosphor Bronze	All	1	Shrouded - 4 Wall	Solder	-30 ░C	85 °C	3 A	Male Pin		5.9 mm	0.232 in	Nylon Polyamide (PA)	Header	UL94 V-0	Push-Pull	Surface Mount	Circular	Gold	8
Hirose Electric USA, Inc. DF3DZ-11P-2V(21)	Board to Board Cable	Beige	Solder Retention	0.079 in	2 mm	Brass	All	1	Shrouded - 4 Wall	Solder	-30 ░C	85 °C	3 A	Male Pin	Tin	5.9 mm	0.232 in	Nylon Polyamide (PA)	Header	UL94 V-0	Push-Pull	Surface Mount	Circular		11
Hirose Electric USA, Inc. DF3DZ-4P-2H(21)	Board to Board Cable	Beige		0.079 in	2 mm	Brass	All	1	Shrouded - 4 Wall	Solder	-55 °C	105 ░C	3 A	Male Pin	Tin	5.6 mm	0.22 in	Nylon Polyamide (PA)	Header	UL94 V-0	Push-Pull	Surface Mount Right Angle	Circular		4
Hirose Electric USA, Inc. DF3DZ-7P-2H(51)	Board to Board Cable	Beige	Solder Retention	0.079 in	2 mm	Brass	All	1	Shrouded - 4 Wall	Solder	-55 °C	105 ░C	3 A	Male Pin		5.6 mm	0.22 in	Nylon Polyamide (PA)	Header	UL94 V-0	Push-Pull	Surface Mount Right Angle	Circular	Gold	7
Hirose Electric USA, Inc. DF3DZ-3P-2H(20)	Board to Board Cable	Beige		0.079 in	2 mm	Brass	All	1	Shrouded - 4 Wall	Solder	-55 °C	105 ░C	3 A	Male Pin	Tin	5.6 mm	0.22 in	Nylon Polyamide (PA)	Header	UL94 V-0	Push-Pull	Surface Mount Right Angle	Circular
Hirose Electric USA, Inc. DF3DZ-13P-2H(21)	Board to Board Cable	Beige		0.079 in	2 mm	Brass	All	1	Shrouded - 4 Wall	Solder	-55 °C	105 ░C	3 A	Male Pin	Tin	5.6 mm	0.22 in	Nylon Polyamide (PA)	Header	UL94 V-0	Push-Pull	Surface Mount Right Angle	Circular		13
Hirose Electric USA, Inc. DF3DZ-6P-2V(21)	Board to Board Cable	Beige	Solder Retention	0.079 in	2 mm	Brass	All	1	Shrouded - 4 Wall	Solder	-30 ░C	85 °C	3 A	Male Pin	Tin	5.9 mm	0.232 in	Nylon Polyamide (PA)	Header	UL94 V-0	Push-Pull	Surface Mount	Circular		6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DF3DZ Series

Connector Header Surface Mount 5 position 0.079" (2.00mm)
