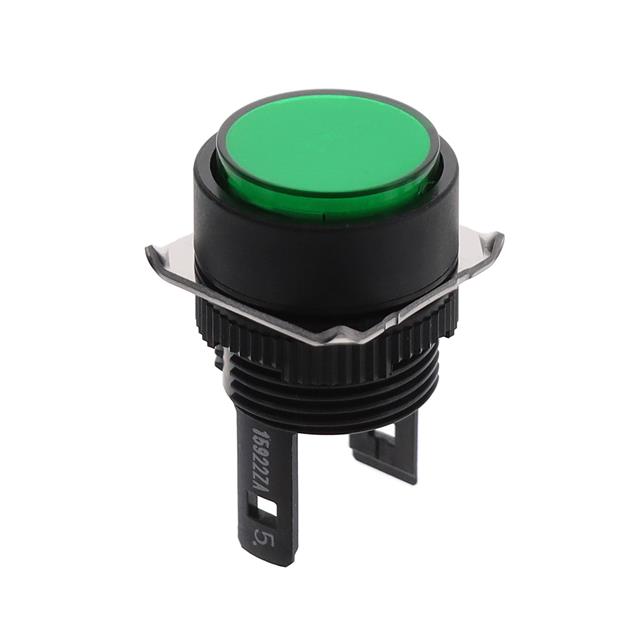

A165-TGA-2S

Active

Omron Electronics Inc-EMC Div

SWITCH PUSHBUTTON DPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

A165-TGA-2S

Active

Omron Electronics Inc-EMC Div

SWITCH PUSHBUTTON DPDT 5A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A165-TGA-2S

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPDT
Color - Actuator/Cap	Green
Current Rating (Amps)	5 A
Electrical Life	100000 Cycles
Ingress Protection	IP66 - Dust Tight, Oil and Water Resistant
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-On
Termination Style	Screwless Clamp
Type	Standard
Voltage Rating - AC	125 V

A165 Series

...

Part	Switch Function	Mechanical Life	Ingress Protection	Electrical Life	Actuator Marking	Voltage Rating - AC	Actuator Type	Circuit	Termination Style	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Mounting Type	Current Rating (Amps)	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Type	Depth Behind Flange	Voltage Rating - DC	Termination Style	Termination Style	Features	Approval Agency	Illumination Type, Color	Illumination	Number of Positions	Illumination Voltage (Nominal)	Requires	(Select First, Then Apply Filters) Compatible Series	Key Removable Positions	Angle of Throw	Contact Timing
Omron Electronics Inc-EMC Div A165-TGA-2S	On-On	200000 Cycles	IP66 - Dust Tight Oil and Water Resistant	100000 Cycles	No Marking	125 V	Button Round	DPDT	Screwless Clamp	55 °C	-10 °C	Panel Mount Front	5 A	Green	16 mm	Standard
Omron Electronics Inc-EMC Div A165W-J2MG-24D-2	On-On	250000 Cycles	IP65	100000 Cycles		125 V		DPDT	Quick Connect Solder	55 °C	-10 °C		3 A 5 A		16 mm	Standard	28.5 mm	30 V	0.11 in	2.8 mm	Bezel - Rectangular	CCC cUL TUV UL	Green LED	Illuminated	2	24 V
Omron Electronics Inc-EMC Div A165W-J3AG							Selector								16 mm	Momentary								Illuminated - Green			Contact Block(s) Illumination Source
Omron Electronics Inc-EMC Div A165L-AAM-24D-1	On-Mom	2000000 Cycles	IP66 - Dust Tight Oil and Water Resistant	100000 Cycles	No Marking	125 V	Button Square	SPDT	Quick Connect Solder	55 °C	-10 °C	Panel Mount Front	5 A	Blue	16 mm	Illuminated Standard			0.11 in	2.8 mm			Blue LED			24 V
Omron Electronics Inc-EMC Div A165L-AAA-5D-2	On-On	200000 Cycles	IP66 - Dust Tight Oil and Water Resistant	100000 Cycles	No Marking	125 V	Button Square	DPDT	Quick Connect Solder	55 °C	-10 °C	Panel Mount Front	5 A	Blue	16 mm	Illuminated Standard			0.11 in	2.8 mm			Blue LED			5 VDC
Omron Electronics Inc-EMC Div A165-JAA-2	On-On	200000 Cycles	IP66 - Dust Tight Oil and Water Resistant	100000 Cycles	No Marking	125 V	Rectangular Button	DPDT	Quick Connect Solder	55 °C	-10 °C	Panel Mount Front	5 A	Blue	16 mm	Standard			0.11 in	2.8 mm
Omron Electronics Inc-EMC Div A165W-J2AG-24D-2	On-Mom	250000 Cycles	IP65	100000 Cycles		125 V		DPDT	Quick Connect Solder	55 °C	-10 °C		3 A 5 A		16 mm	Standard	28.5 mm	30 V	0.11 in	2.8 mm	Bezel - Rectangular	CCC cUL TUV UL	Green LED	Illuminated	2	24 V
Omron Electronics Inc-EMC Div A165K-A3AM							Keylock								16 mm	Maintained Momentary								Non-Illuminated			Contact Block(s)	A165K Omron
Omron Electronics Inc-EMC Div A165L-AGM-12D-2	On-Mom	2000000 Cycles	IP66 - Dust Tight Oil and Water Resistant	100000 Cycles	No Marking	125 V	Button Square	DPDT	Quick Connect Solder	55 °C	-10 °C	Panel Mount Front	5 A	Green	16 mm	Illuminated Standard			0.11 in	2.8 mm			Green LED			12 VDC
Omron Electronics Inc-EMC Div A165K-J3MC-2	On-On-On	250000 Cycles		100000 Cycles		125 V	Flat Key	DPDT	Quick Connect Solder	55 °C	-10 °C		3 A 5 A		16 mm		28.5 mm	30 V	0.11 in	2.8 mm	IP65 Oil-Resistant								Center	45 °	Not Specified

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 54.43
		10	$ 49.59
		25	$ 46.27
		50	$ 44.45
		100	$ 41.43
		250	$ 39.38

Description

General part information

A165 Series

Pushbutton Switch DPDT Standard Panel Mount, Front

Documents

Technical documentation and resources

No documents available
