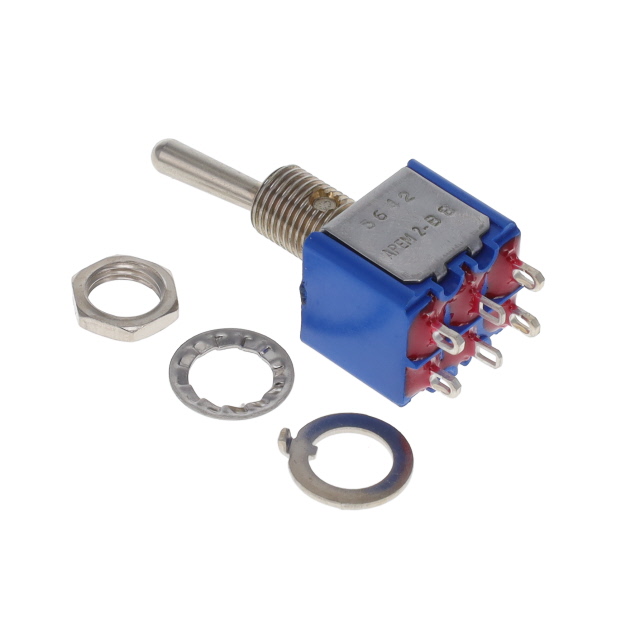

5642AB
ActiveAPEM
SWITCH TOGGLE DPDT 6A 125V
Deep-Dive with AI
Search across all available documentation for this part.
5642AB
ActiveAPEM
SWITCH TOGGLE DPDT 6A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5642AB |
|---|---|
| Actuator Material | Brass, Nickel Plated |
| Actuator Type | Standard Round |
| Bushing Thread | 1/4-40 |
| Circuit | DPDT |
| Current Rating (Amps) | 4 A, 6 A |
| Electrical Life | 50000 Cycles |
| Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Panel Cutout Dimensions [diameter] | 6.5 mm |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.41 | |
| 10 | $ 10.71 | |||
| 25 | $ 10.10 | |||
| 50 | $ 9.66 | |||
| 100 | $ 9.24 | |||
| 250 | $ 8.71 | |||
| 500 | $ 8.33 | |||
| 1000 | $ 7.96 | |||
Description
General part information
5642A Series
Toggle Switch DPDT Panel Mount
