JBXFD1G06MCSDSMR

Active

Souriau-Sunbank by Eaton

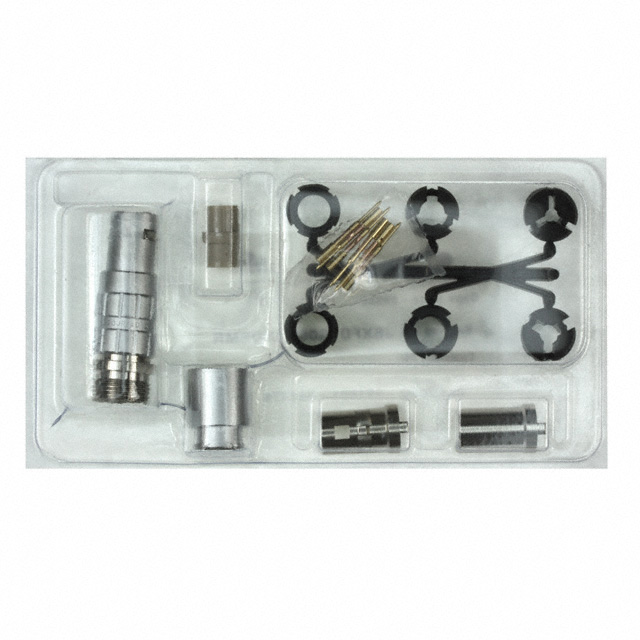

CONN PLUG MALE 6POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

JBXFD1G06MCSDSMR

Active

Souriau-Sunbank by Eaton

CONN PLUG MALE 6POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JBXFD1G06MCSDSMR

Applications	Instrumentation, Medical, Telecommunications, Industrial
Backshell Material, Plating	Brass, Chrome over Nickel
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.5 µm
Contact Finish Thickness - Mating	19.7 µin
Current Rating (Amps)	7 A
Fastening Type	Push-Pull
Features	Boot Adapter, Backshell
Ingress Protection	IP40
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	1
Shielding	Shielded
Termination	Crimp
Voltage Rating	660 V

JBXFD1G Series

Part	Voltage Rating	Mounting Type	Shell Finish	Shielding	Applications	Orientation	Number of Positions	Contact Finish - Mating	Shell Size - Insert	Features	Termination	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Connector Type	Material Flammability Rating	Shell Material	Color	Primary Material	Insert Material	Backshell Material, Plating	Fastening Type
Souriau-Sunbank by Eaton JBXFD1G06MCSDSMR	660 V	Free Hanging (In-Line)	Chrome over Nickel	Shielded	Industrial Instrumentation Medical Telecommunications	G	6	Gold	1	Backshell Boot Adapter	Crimp	IP40	125 °C	-40 °C	0.5 µm	19.7 µin	7 A	Male Pins Plug	UL94 V-0	Brass	Silver	Metal	Polyetheretherketone (PEEK)	Brass Chrome over Nickel	Push-Pull
Souriau-Sunbank by Eaton JBXFD1G03MCSDSR	600 V	Free Hanging (In-Line)	Chrome over Nickel	Shielded	Industrial Instrumentation Medical Telecommunications	G		Gold	1	Backshell	Crimp	IP40	125 °C	-40 °C	0.5 µm	19.7 µin	12 A	Male Pins Plug	UL94 V-0	Brass	Silver	Metal	Polyetheretherketone (PEEK)	Brass Chrome over Nickel	Push-Pull
Souriau-Sunbank by Eaton JBXFD1G05MSSDSR	660 V	Free Hanging (In-Line)	Chrome over Nickel	Shielded	Industrial Instrumentation Medical Telecommunications	G		Gold	1	Backshell		IP40	125 °C	-40 °C	0.5 µm	19.7 µin	9 A	Male Pins Plug	UL94 V-0	Brass	Silver	Metal	Polyetheretherketone (PEEK)	Brass Chrome over Nickel	Push-Pull
Souriau-Sunbank by Eaton JBXFD1G08MCSDSMR	600 V	Free Hanging (In-Line)	Chrome over Nickel	Shielded	Industrial Instrumentation Medical Telecommunications	G	8	Gold	1	Backshell Boot Adapter	Crimp	IP40	125 °C	-40 °C	0.5 µm	19.7 µin	5 A	Male Pins Plug	UL94 V-0	Brass	Silver	Metal	Polyetheretherketone (PEEK)	Brass Chrome over Nickel	Push-Pull
Souriau-Sunbank by Eaton JBXFD1G06MSSDSR	660 V	Free Hanging (In-Line)	Chrome over Nickel	Shielded	Industrial Instrumentation Medical Telecommunications	G	6	Gold	1	Backshell		IP40	125 °C	-40 °C	0.5 µm	19.7 µin	7 A	Male Pins Plug	UL94 V-0	Brass	Silver	Metal	Polyetheretherketone (PEEK)	Brass Chrome over Nickel	Push-Pull
Souriau-Sunbank by Eaton JBXFD1G06FCSDSR	660 V	Free Hanging (In-Line)	Chrome over Nickel	Shielded	Industrial Instrumentation Medical Telecommunications	G	6	Gold	1	Backshell	Crimp	IP40	125 °C	-40 °C	0.5 µm	19.7 µin	7 A	Female Sockets Plug	UL94 V-0	Brass	Silver	Metal	Polyetheretherketone (PEEK)	Brass Chrome over Nickel	Push-Pull
Souriau-Sunbank by Eaton JBXFD1G06MSSDSMR	660 V	Free Hanging (In-Line)	Chrome over Nickel	Shielded	Industrial Instrumentation Medical Telecommunications	G	6	Gold	1	Backshell Boot Adapter		IP40	125 °C	-40 °C	0.5 µm	19.7 µin	7 A	Male Pins Plug	UL94 V-0	Brass	Silver	Metal	Polyetheretherketone (PEEK)	Brass Chrome over Nickel	Push-Pull
Souriau-Sunbank by Eaton JBXFD1G06MSNDSR	660 V	Free Hanging (In-Line)	Black Chrome over Nickel	Shielded	Industrial Instrumentation Medical Telecommunications	G	6	Gold	1	Backshell		IP40	125 °C	-40 °C	0.5 µm	19.7 µin	7 A	Male Pins Plug	UL94 V-0	Brass	Black	Metal	Polyetheretherketone (PEEK)	Black Chrome over Nickel Brass	Push-Pull
Souriau-Sunbank by Eaton JBXFD1G03MCSDSMR	600 V	Free Hanging (In-Line)	Chrome over Nickel	Shielded	Industrial Instrumentation Medical Telecommunications	G		Gold	1	Backshell Boot Adapter	Crimp	IP40	125 °C	-40 °C	0.5 µm	19.7 µin	12 A	Male Pins Plug	UL94 V-0	Brass	Silver	Metal	Polyetheretherketone (PEEK)	Brass Chrome over Nickel	Push-Pull
Souriau-Sunbank by Eaton JBXFD1G02MSSDSMR	760 V	Free Hanging (In-Line)	Chrome over Nickel	Shielded	Industrial Instrumentation Medical Telecommunications	G	2	Gold	1	Backshell Boot Adapter		IP40	125 °C	-40 °C	0.5 µm	19.7 µin	15 A	Male Pins Plug	UL94 V-0	Brass	Silver	Metal	Polyetheretherketone (PEEK)	Brass Chrome over Nickel	Push-Pull
