1019184

Active

Phoenix Contact

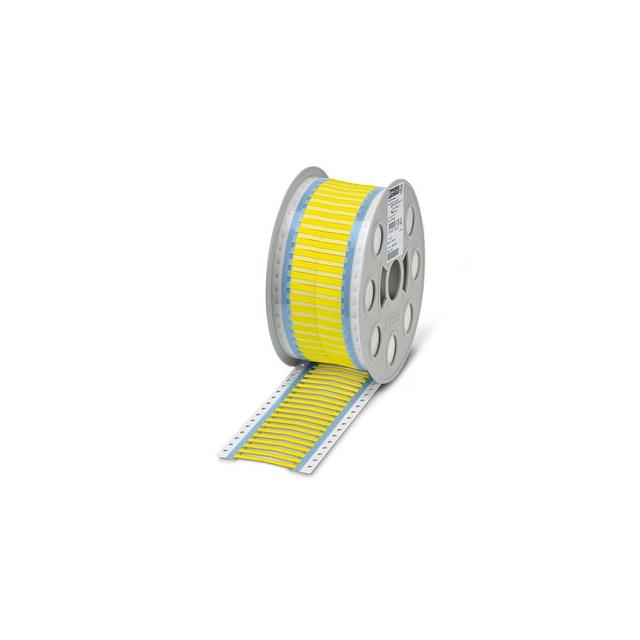

SHRINK SLEEVE, ROLL, YELLOW, UNL

Search across all available documentation for this part.

Active

Phoenix Contact

SHRINK SLEEVE, ROLL, YELLOW, UNL

Technical Specifications

Parameters and characteristics for this part

Part	Label Size [x]	Label Size [y]	Label Size [x]	Label Size [y]	Operating Temperature [Max]	Operating Temperature [Min]	Material	Color	Label Type	For Use With/Related Products	Label Size [y]	Label Size [x]	Label Size [x]	Label Size [y]	Label Size [Max] [x]	Label Size [Min] [x]	Label Size [Max] [x]	Label Size [Min] [x]	Label Size
Phoenix Contact 0800399	0.2 in	2.36 in	5 mm	60 mm	135 °C	-55 °C	Polyolefin	Yellow	Heat Shrinkable	Thermomark Printer
Phoenix Contact 1019184					125 °C	-55 °C	Polyolefin (PO)	Yellow	Standard		30 mm	0.197 in	5 mm	1.181 in	3.2 mm	0.04 "	0.13 "	1 mm
Phoenix Contact 0800290			5 mm	30 m	135 °C	-55 °C	Polyolefin	White	Heat Shrinkable	Thermomark Printer		0.2 "		98.4 '
Phoenix Contact 0800384	0.2 in	2.36 in	5 mm	60 mm	135 °C	-55 °C	Polyolefin	White	Heat Shrinkable	Thermomark Printer
Phoenix Contact 0800320					135 °C	-55 °C	Polyolefin	White	Heat Shrinkable	Thermomark Printer									0.2 in 393.7 '
Phoenix Contact 0800428					135 °C	-55 °C	Polyolefin	Black	Heat Shrinkable	Thermomark Printer									0.2 in 393.7 '
Phoenix Contact 0800301			5 mm	30 m	135 °C	-55 °C	Polyolefin	Yellow	Heat Shrinkable	Thermomark Printer		0.2 "		98.4 '
Phoenix Contact 0800408			5 mm	30 mm	135 °C	-55 °C	Polyolefin	Yellow	Heat Shrinkable	Thermomark Printer		0.2 "		1.18 in
Phoenix Contact 0800416			5 mm	30 m	135 °C	-55 °C	Polyolefin	Black	Heat Shrinkable	Thermomark Printer		0.2 "		98.4 '
Phoenix Contact 0800387			5 mm	30 mm	135 °C	-55 °C	Polyolefin	White	Heat Shrinkable	Thermomark Printer		0.2 "		1.18 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1352.04

General part information

Yellow Standard Label 0.197" W x 1.181" L (5.0mm x 30.0mm); Cable O.D. 0.04" ~ 0.13" (1.0mm ~ 3.2mm)
