C8029.41.01

Active

Prysmian Group

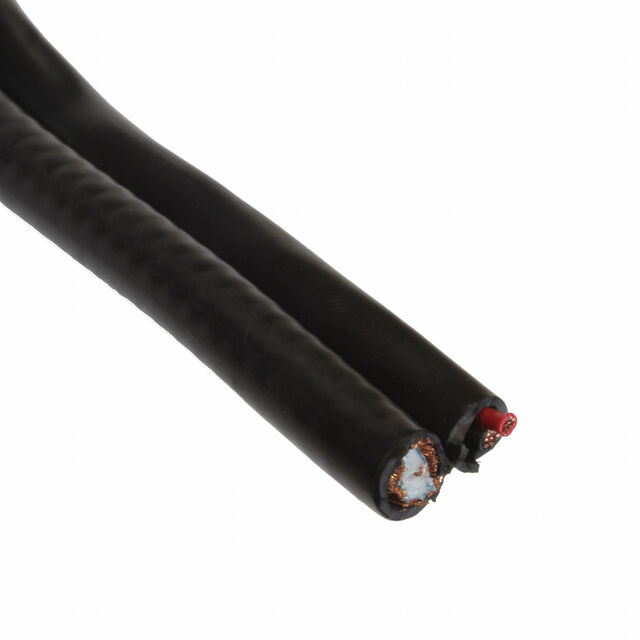

CABLE COAX PLEN RG6 18AWG 100'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE COAX PLEN RG6 18AWG 100'

Technical Specifications

Parameters and characteristics for this part

Specification	C8029.41.01

Cable Group	RG-6
Cable Type	Coaxial - Plenum
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	4.5 mm
Dielectric Diameter [diameter]	0.177 "
Dielectric Material	Solid Polyethylene (PE)
Features	18 AWG Unshielded Pair
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	6.86 mm
Jacket (Insulation) Diameter [diameter]	0.27 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Length [x]	100 ft
Length [x]	30.48 m
Shield Coverage	95 %, 100 %
Shield Material	Tinned, Flexfoil®, Copper
Shield Type	Foil, Braid
Usage	Video, RF Signal
VoP, Velocity of Propagation	85
Wire Gauge	18 AWG

Part	Shield Type	Impedance	Features	Cable Group	Usage	Shield Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Cable Type	Wire Gauge	Conductor Strand	Length [x]	Length [x]	Length	Length	Jacket Color	Jacket (Insulation) Material	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	VoP, Velocity of Propagation	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]
Prysmian Group C8029.41.01	Braid Foil	75 Ohms	18 AWG Unshielded Pair	RG-6	RF Signal Video	Copper Flexfoil® Tinned	4.5 mm	0.177 "	Coaxial - Plenum	18 AWG	Solid	100 ft	30.48 m	304.8 m	1000 ft	Black	Poly-Vinyl Chloride (PVC)	95 % 100 %	6.86 mm	0.27 in	Copper Bare	85	Solid Polyethylene (PE)
Prysmian Group C8029.38.01	Braid Foil	75 Ohms	18 AWG Unshielded Pair	RG-6	RF Signal Video	Copper Flexfoil® Tinned	4.5 mm	0.177 "	Coaxial - Plenum	18 AWG	Solid			152.4 m	6000 in	Black	Poly-Vinyl Chloride (PVC)	95 % 100 %	6.86 mm	0.27 in	Copper Bare	85	Solid Polyethylene (PE)
Prysmian Group C8029ACS.41.01		75 Ohms	18 AWG Unshielded Pair	RG-6	Analog Video		5.21 mm	0.205 "	Coaxial	18 AWG	Solid			304.8 m	1000 ft	Black	Poly-Vinyl Chloride (PVC)		6.99 mm	0.275 in	Copper Bare	83		-30 ░C	75 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Coaxial - Plenum Cable 18 AWG (0.82mm²) RG-6 100.0' (30.48m) 75 Ohms
