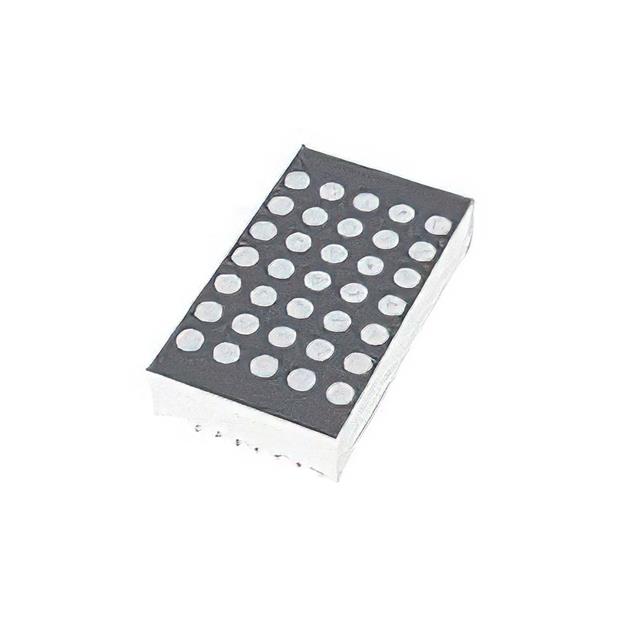

TC12-11SURKWA
ActiveKingbright
SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY, HYPER RED, 30.6MM, ROHS COMPLIANT PACKAGE-14
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TC12-11SURKWA
ActiveKingbright
SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY, HYPER RED, 30.6MM, ROHS COMPLIANT PACKAGE-14
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TC12-11SURKWA |
|---|---|
| Color | Red |
| Configuration [x] | 5 |
| Configuration [y] | 7 |
| Internal Connection | Common Cathode |
| Millicandela Rating | 130 mcd |
| Size / Dimension [x] | 39 mm |
| Size / Dimension [x] | 1.54 in |
| Size / Dimension [y] | 22.9 mm |
| Size / Dimension [y] | 0.9 " |
| Size / Dimension [z] | 0.32 " |
| Size / Dimension [z] | 8 mm |
| Voltage - Forward (Vf) (Typ) | 1.85 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.00 | |
| 21 | $ 4.95 | |||
| 105 | $ 4.06 | |||
| 504 | $ 3.42 | |||
| 1008 | $ 3.14 | |||
| 2016 | $ 3.01 | |||
Description
General part information
TC12-11 Series
Dot Matrix Display Module 5 x 7 Common Cathode Red 1.85V 1.54" L x 0.90" W x 0.32" H (39.00mm x 22.90mm x 8.00mm)
