0766500009

Active

Molex

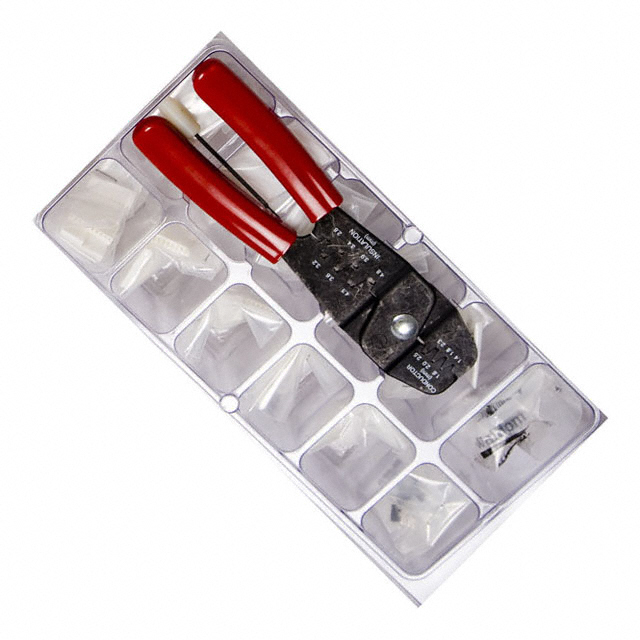

KIT CONN KK SERIES ASSORTED

Search across all available documentation for this part.

Active

Molex

KIT CONN KK SERIES ASSORTED

Technical Specifications

Parameters and characteristics for this part

Specification	0766500009

Kit Type	Circuit Terminal Header, Housing
Values	Headers, Crimp Tool, Assorted 30 ~ 22 AWG Housings, Extraction Tool
Values	184 pcs

...

Part	Values	Values [Max]	Values	Values [Min]	Kit Type	Values [Max] [custom]	Values [Min] [custom]	Values [Max] [custom]	Values [Min] [custom]
Molex 0766500029	Crimp Tool	14 AWG	401 pcs	22 AWG
Molex 0766500076	6 position Circuit Plug Receptacle	18 AWG	14 position	24 AWG	Circuit Plug Receptacle
Molex 0766500099	Circuit Plug Receptacle Crimp Terminals	18 AWG	10 pcs 23 pcs	24 AWG	Circuit Plug Receptacle
Molex 0766500173	30 40 50 60 68 80		12 position		Centronics D-Shaped Outer Shroud Contacts Receptacle
Molex 0766500038	Assorted Crimp Tool	10 AWG	901 pcs	22 AWG
Molex 0766500009	Assorted 30 ~ 22 AWG Housings Crimp Tool Extraction Tool Headers		184 pcs		Circuit Terminal Header Housing
Molex 0766500111	Assorted Self Contained Connectors Safety Caps		10 pcs		I/O Connectors
Molex 0766500073	Circuit Plug Receptacle Crimp Terminals	18 AWG	36 pcs 82 pcs	24 AWG	Circuit Plug Receptacle
Molex 0766500052	Crimp Terminals	10 AWG	90 pcs	22 AWG	Wire Pin
Molex 0766500166	Assorted		120 pcs		Rectangular - Contact Housing	4	2	20	22

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Kit Circuit Terminal Header, Housing
