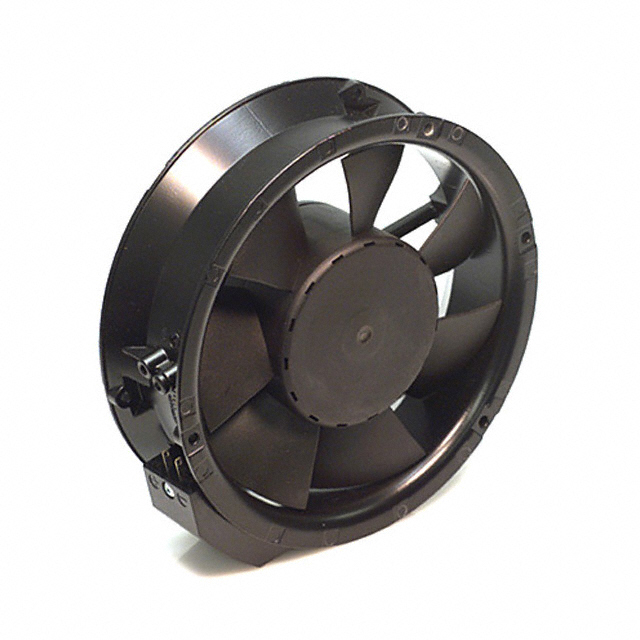

6212NM

Active

ebm-papst Inc.

FAN AXL 171.5X50.8MM 12VDC TERM

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXL 171.5X50.8MM 12VDC TERM

Technical Specifications

Parameters and characteristics for this part

Specification	6212NM

Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	80000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Metal
Noise	50 dB(A)
Operating Temperature [Max]	72 °C
Operating Temperature [Max]	162 °F
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	12 W
RPM	2850 RPM
Size / Dimension	Round
Size / Dimension [diameter]	171.5 mm
Termination	2 Terminals
Voltage - Rated	12 VDC
Voltage Range [Max]	15 V
Voltage Range [Min]	8 VDC
Weight	816.5 g
Weight	1.8 lbs
Width [y]	2 "

Part	Voltage - Rated	Material - Blade	Width [y]	Termination	Weight	Weight	Noise	Bearing Type	RPM	Fan Type	Power (Watts)	Voltage Range [Max]	Voltage Range [Min]	Size / Dimension	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Frame	Lifetime @ Temp.	Approval Agency
ebm-papst Inc. 6212NM	12 VDC	Fiberglass Reinforced Nylon Polyamide (PA)	2 "	2 Terminals	816.5 g	1.8 lbs	50 dB(A)	Ball	2850 RPM	Tubeaxial	12 W	15 V	8 VDC	Round	171.5 mm	-20 °C	72 °C	-20 C	162 °F	Metal	80000 Hrs	CE CSA UL VDE
ebm-papst Inc. 6212NH	12 VDC									Motorized Impellers				Round	171.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 104.94

General part information

Fan Tubeaxial 12VDC Round - 171.5mm Dia Ball 206.0 CFM (5.77m³/min) 2 Terminals
