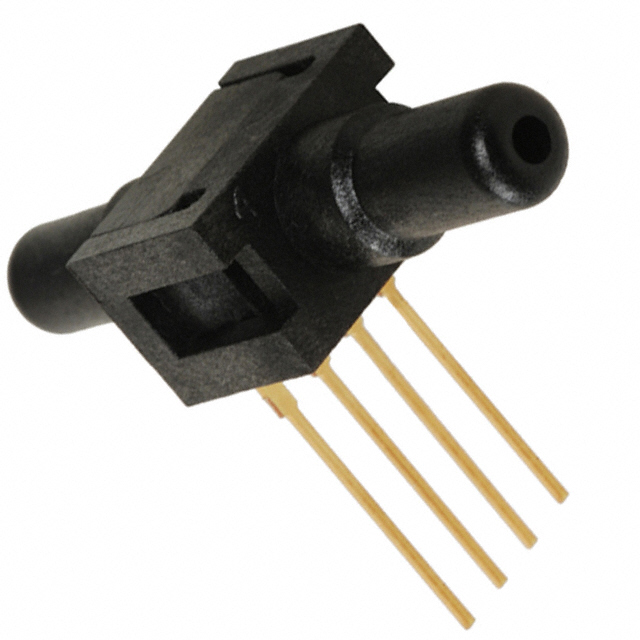

24PCEFA6D

Active

Honeywell Sensing and Productivity Solutions

SENSOR 0.5PSID 0.2" .035V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SENSOR 0.5PSID 0.2" .035V

Technical Specifications

Parameters and characteristics for this part

Part	Port Size	Port Size	Port Size	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Pressure	Operating Pressure	Port Style	Output [Max]	Output [Min]	Accuracy	Output Type	Applications	Termination Style	Pressure Type
Honeywell Sensing and Productivity Solutions 24PCEFA6D	Dual Male Tube	5 mm	0.2 "	85 °C	-40 °C	4-SIP Module	Through Hole	12 V	10 VDC	0.5 PSI	3.45 kPa	Barbless	35 mV	0 mV	1 %	Wheatstone Bridge	Board Mount	PC Pin	Differential
Honeywell Sensing and Productivity Solutions 24PCEFA6G		0.2 " 5 mm		85 °C	-40 °C	4-SIP Module	Through Hole	12 V	10 VDC	0.5 PSI	3.45 kPa	Barbless	35 mV	0 mV	1 %	Wheatstone Bridge	Board Mount	PC Pin	Compound

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor ±0.5PSI (±3.45kPa) Differential Male - 0.2" (5mm) Tube, Dual 0 mV ~ 35 mV (10V) 4-SIP Module
