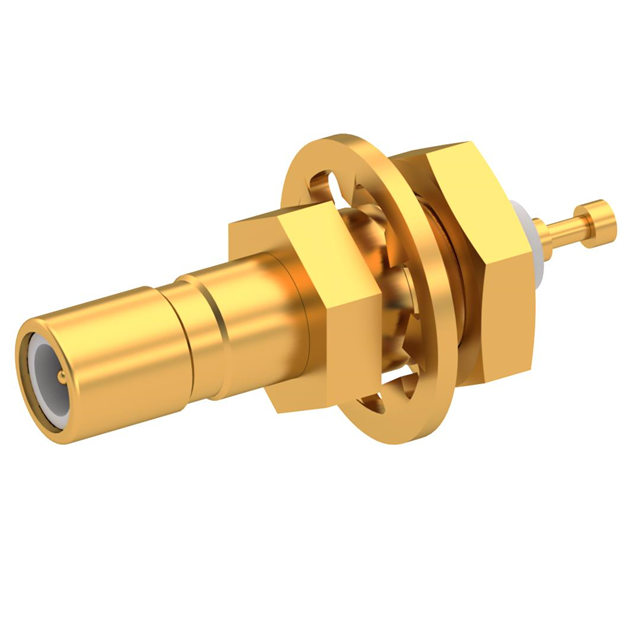

7219-1511-000

Active

Radiall USA, Inc.

SSMB M STR BHD TUR

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMB M STR BHD TUR

Technical Specifications

Parameters and characteristics for this part

Specification	7219-1511-000

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMB
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Frequency - Max [Max]	Fastening Type	Dielectric Material	Mating Cycles	Number of Ports	Center Contact Plating	Body Finish	Body Material	Includes	Mounting Feature	Connector Style	Center Contact Material	Housing Color	Voltage Rating	Connector Type	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Contact Termination
Radiall USA, Inc. 7219-1511-000	12.4 GHz	Snap-On	Polytetrafluoroethylene (PTFE)	500	1	Gold	Gold	Brass	1 Connector 1 Lockwasher 1 Nut	Bulkhead - Rear Side Nut	SSMB	Beryllium Copper	Gold	250 VDC	Jack Male Pin	Solder	-65 ░C	165 °C	50 Ohms	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SSMB Connector Jack, Male Pin 50 Ohms Panel Mount Solder
