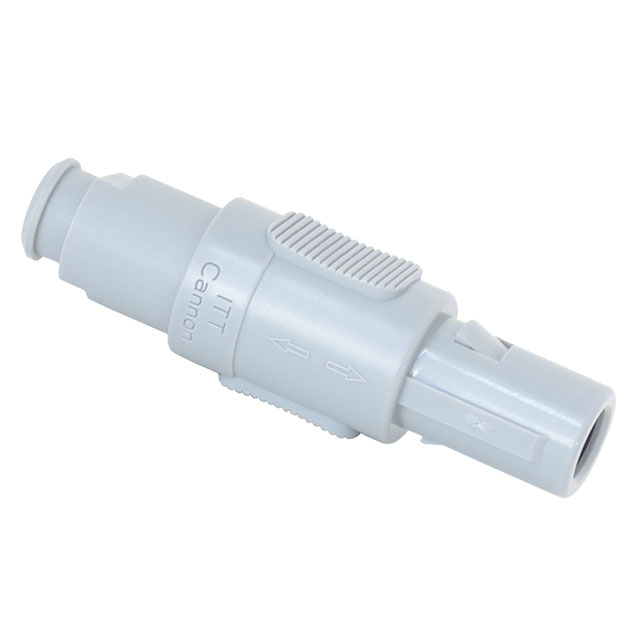

PLA3G823010

Active

ITT Cannon, LLC

CONN PLUG MALE 10POS SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PLA3G823010

Active

ITT Cannon, LLC

CONN PLUG MALE 10POS SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PLA3G823010

Applications	Testing Equipment, Medical, Industrial, Measurement
Backshell Material, Plating	Polysulfone (PSU)
Cable Opening [custom]	0.209 in, 0.256 in
Cable Opening [custom]	6.5 mm, 5.3 mm
Color	Gray
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Material	Copper Alloy
Current Rating (Amps)	3 A
Fastening Type	Push-Pull, Latch Lock
Features	Backshell
Ingress Protection	IP50
Insert Material	Plastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Orientation	0 °
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shielding	Unshielded

PLA3G Series

Part	Color	Ingress Protection	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Shell Material	Connector Type	Contact Material	Mounting Type	Backshell Material, Plating	Shielding	Contact Finish - Mating	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Applications	Features	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Fastening Type	Insert Material	Number of Positions	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Orientation
ITT Cannon, LLC PLA3G822J10	Gray	IP50	0.157 in	0.205 in	4 mm	5.2 mm	Polysulfone (PSU)	Male Pins Plug	Copper Alloy	Free Hanging (In-Line)	Polysulfone (PSU)	Unshielded	Gold	UL94 V-0	150 °C	-50 °C	J	Industrial Measurement Medical Testing Equipment	Backshell	Plastic	0.51 µm	20 µin	3 A	Latch Lock Push-Pull	Plastic	10
ITT Cannon, LLC PLA3G823J06	Gray	IP50					Polysulfone (PSU)	Male Pins Plug	Copper Alloy	Free Hanging (In-Line)	Polysulfone (PSU)	Unshielded	Gold	UL94 V-0	150 °C	-50 °C	J	Industrial Measurement Medical Testing Equipment	Backshell	Plastic	0.51 µm	20 µin	6 A	Latch Lock Push-Pull	Plastic	6	0.209 in 0.256 in	5.3 mm 6.5 mm
ITT Cannon, LLC PLA3G821E07	Gray	IP50					Polysulfone (PSU)	Male Pins Plug	Copper Alloy	Free Hanging (In-Line)	Polysulfone (PSU)	Unshielded	Gold	UL94 V-0	150 °C	-50 °C	E	Industrial Measurement Medical Testing Equipment	Backshell	Plastic	0.51 µm	20 µin	5 A	Latch Lock Push-Pull	Plastic	7			2.7 mm	0.154 in	3.9 mm	0.106 in
ITT Cannon, LLC PLA3G823010	Gray	IP50					Polysulfone (PSU)	Male Pins Plug	Copper Alloy	Free Hanging (In-Line)	Polysulfone (PSU)	Unshielded	Gold	UL94 V-0	150 °C	-50 °C		Industrial Measurement Medical Testing Equipment	Backshell	Plastic	0.51 µm	20 µin	3 A	Latch Lock Push-Pull	Plastic	10	0.209 in 0.256 in	5.3 mm 6.5 mm					0 °
ITT Cannon, LLC PLA3G821E08	Gray	IP50					Polysulfone (PSU)	Male Pins Plug	Copper Alloy	Free Hanging (In-Line)	Polysulfone (PSU)	Unshielded	Gold	UL94 V-0	150 °C	-50 °C	E	Industrial Measurement Medical Testing Equipment	Backshell	Plastic	0.51 µm	20 µin	5 A	Latch Lock Push-Pull	Plastic	8			2.7 mm	0.154 in	3.9 mm	0.106 in
ITT Cannon, LLC PLA3G821C03	Gray	IP50					Polysulfone (PSU)	Male Pins Plug	Copper Alloy	Free Hanging (In-Line)	Polysulfone (PSU)	Unshielded	Gold	UL94 V-0	150 °C	-50 °C	C	Industrial Measurement Medical Testing Equipment	Backshell	Plastic	0.51 µm	20 µin	10 A	Latch Lock Push-Pull	Plastic				2.7 mm	0.154 in	3.9 mm	0.106 in
ITT Cannon, LLC PLA3G822J06	Gray	IP50	0.157 in	0.205 in	4 mm	5.2 mm	Polysulfone (PSU)	Male Pins Plug	Copper Alloy	Free Hanging (In-Line)	Polysulfone (PSU)	Unshielded	Gold	UL94 V-0	150 °C	-50 °C	J	Industrial Measurement Medical Testing Equipment	Backshell	Plastic	0.51 µm	20 µin	6 A	Latch Lock Push-Pull	Plastic	6
ITT Cannon, LLC PLA3G821H14	Gray	IP50					Polysulfone (PSU)	Male Pins Plug	Copper Alloy	Free Hanging (In-Line)	Polysulfone (PSU)	Unshielded	Gold	UL94 V-0	150 °C	-50 °C	H	Industrial Measurement Medical Testing Equipment	Backshell	Plastic	0.51 µm	20 µin	2 A	Latch Lock Push-Pull	Plastic	14			2.7 mm	0.154 in	3.9 mm	0.106 in
ITT Cannon, LLC PLA3G823C02	Gray	IP50					Polysulfone (PSU)	Male Pins Plug	Copper Alloy	Free Hanging (In-Line)	Polysulfone (PSU)	Unshielded	Gold	UL94 V-0	150 °C	-50 °C	C	Industrial Measurement Medical Testing Equipment	Backshell	Plastic	0.51 µm	20 µin	10 A	Latch Lock Push-Pull	Plastic	2	0.209 in 0.256 in	5.3 mm 6.5 mm
ITT Cannon, LLC PLA3G822H03	Gray	IP50	0.157 in	0.205 in	4 mm	5.2 mm	Polysulfone (PSU)	Male Pins Plug	Copper Alloy	Free Hanging (In-Line)	Polysulfone (PSU)	Unshielded	Gold	UL94 V-0	150 °C	-50 °C	H	Industrial Measurement Medical Testing Equipment	Backshell	Plastic	0.51 µm	20 µin	10 A	Latch Lock Push-Pull	Plastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.80

Description

General part information

PLA3G Series

10 Position Circular Connector Plug, Male Pins Solder Cup
