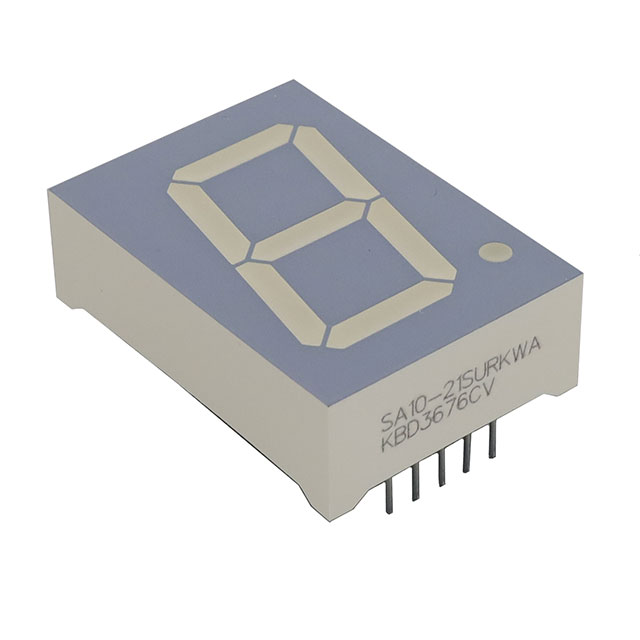

SA10-21SURKWA

Active

Kingbright

SMART/NORMAL 7 SEG NUMERIC LED DISPLAY, HYPER RED, 25.4MM, ROHS COMPLIANT PACKAGE-10

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SA10-21SURKWA

Active

Kingbright

SMART/NORMAL 7 SEG NUMERIC LED DISPLAY, HYPER RED, 25.4MM, ROHS COMPLIANT PACKAGE-10

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SA10-21SURKWA

Color	Red
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	1 in
Digit/Alpha Size	25.4 mm
Display Type	7-Segment
Millicandela Rating	260 mcd
Number of Characters [custom]	1
Package / Case	10-DIP
Package / Case [x]	1.197 in
Package / Case [y]	30.4 mm
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	1.339 "
Size / Dimension [x]	34 mm
Size / Dimension [y]	0.551 in
Size / Dimension [y]	14 mm
Size / Dimension [z]	0.413 in
Size / Dimension [z]	10.5 mm
Voltage - Forward (Vf) (Typ)	1.95 V
Wavelength - Peak	645 nm

SA10-21 Series

Part	Number of Characters [custom]	Millicandela Rating	Digit/Alpha Size	Digit/Alpha Size	Voltage - Forward (Vf) (Typ)	Display Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Power Dissipation (Max) [Max]	Wavelength - Peak	Package / Case	Package / Case	Package / Case	Color	Current - Test	Common Pin	Package / Case [y]	Package / Case [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]
Kingbright SA10-21EWA	1	23 mcd	1 in	25.4 mm	4 V	7-Segment	24 mm	10.5 mm	1.339 "	0.413 "	0.945 in	34 mm	150 mW	627 nm	30.48 mm	1.2 in	10-DIP	Red	20 mA	Common Anode
Kingbright SA10-21SURKWA	1	260 mcd	1 in	25.4 mm	1.95 V	7-Segment	0.551 in	0.413 in				1.339 "	75 mw	645 nm			10-DIP	Red	20 mA	Common Anode	30.4 mm	1.197 in	34 mm	14 mm	10.5 mm
Kingbright SA10-21CGKWA	1	95 mcd	1 in	25.4 mm	2.1 V	7-Segment	0.551 in	0.413 in				1.339 "	75 mw				10-DIP	Green	20 mA	Common Anode	30.4 mm	1.197 in	34 mm	14 mm	10.5 mm
Kingbright SA10-21SYKWA	1	400 mcd	1 in	25.4 mm	2 V	7-Segment	0.551 in	0.413 in				1.339 "	75 mw	590 nm			10-DIP	Yellow	20 mA	Common Anode	30.4 mm	1.197 in	34 mm	14 mm	10.5 mm
Kingbright SA10-21YWA	1	23 mcd	1 in	25.4 mm	4.2 V	7-Segment	24 mm	10.5 mm	1.339 "	0.413 "	0.945 in	34 mm	150 mW	590 nm	30.48 mm	1.2 in	10-DIP	Yellow	20 mA	Common Anode
Kingbright SA10-21GWA	1	37 mcd	1 in	25.4 mm	4.4 V	7-Segment	24 mm	10.5 mm	1.339 "	0.413 "	0.945 in	34 mm	125 mW	565 nm	30.48 mm	1.2 in	10-DIP	Green	20 mA	Common Anode

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.78
		20	$ 3.01
		100	$ 2.53
		500	$ 2.23
		1000	$ 2.13
		2000	$ 2.06
		5000	$ 2.00

Description

General part information

SA10-21 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.95V 20mA 1.339" H x 0.551" W x 0.413" D (34.00mm x 14.00mm x 10.50mm) 10-DIP (1.197", 30.40mm)
