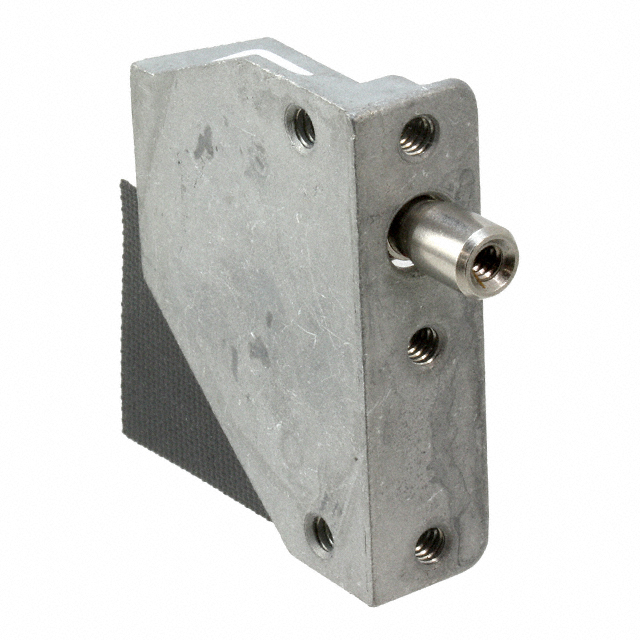

3AC6-D8
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 15A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3AC6-D8
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 15A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3AC6-D8 |
|---|---|
| Actuator Type | Push-Pull Plunger |
| Circuit | SPDT |
| Current Rating (Amps) | 500 mA, 15 A |
| Mounting Type | Chassis Mount |
| Operating Force | 1814 gf |
| Operating Position | 5.2 mm |
| Operating Position | 0.203 in |
| Overtravel | 0.125 in |
| Overtravel | 3.2 mm |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 200 | $ 173.75 | |
Description
General part information
3AC6 Series
Switch SPDT Chassis Mount
