SX1272LM1BAP

Obsolete

Semtech Corporation

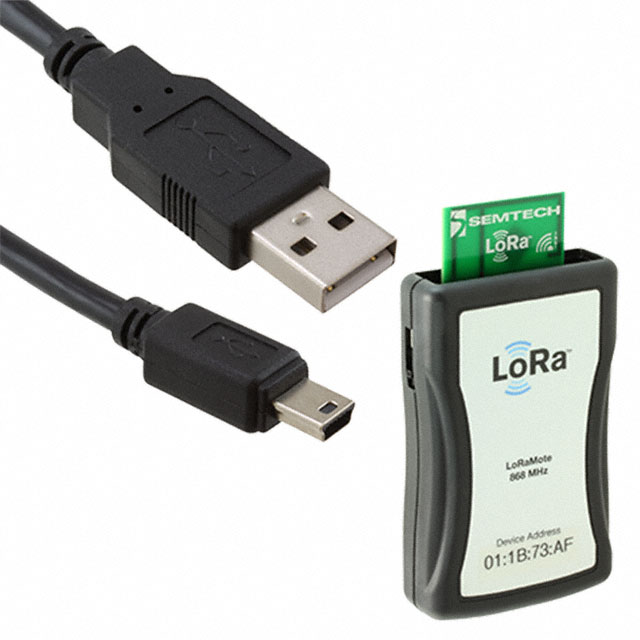

SX1272 868MHZ LORAMOTE KIT

Search across all available documentation for this part.

Obsolete

Semtech Corporation

SX1272 868MHZ LORAMOTE KIT

Technical Specifications

Parameters and characteristics for this part

Part	Data Rate (Max) [Max]	Modulation or Protocol	Interface	Applications	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency [Min]	Frequency [Max]	Sensitivity	Function	Power - Output	Data Rate (Max)	Mounting Type	Serial Interfaces	Type	Protocol	Modulation	Current - Transmitting	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Current - Receiving	Package / Case	RF Family/Standard	Frequency
Semtech Corporation SX1272LM1BAP	115.2 kbps	802.15.4	SPI	General Purpose	3.7 V	1.8 V	860 MHz	1.02 GHz	-137 dBm	Transceiver	20 dBm
Semtech Corporation SX1272-72RF1CES					3.7 V	1.8 V			-137 dBm		20 dBm	300 kbps	Surface Mount	SPI	TxRx Only	LoRa™	FSK GFSK GMSK MSK OOK	125 mA	28-QFN (6x6)	85 °C	-40 °C	11.2 mA	28-VQFN Exposed Pad	802.15.4	915 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Transceiver 860MHz ~ 1.02GHz 802.15.4 SPI 115.2kbps

Technical documentation and resources

No documents available
