PE45465

Active

Pasternack

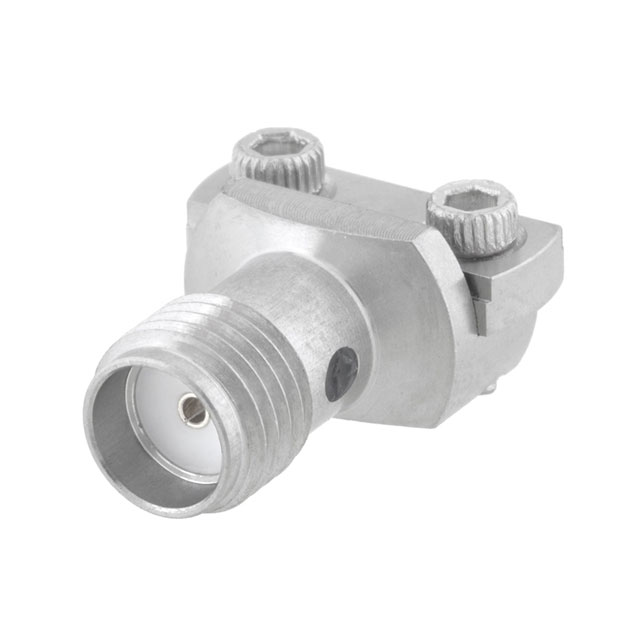

SMA(F) END LAUNCH MSTRP 0.005"

Search across all available documentation for this part.

Active

Pasternack

SMA(F) END LAUNCH MSTRP 0.005"

Technical Specifications

Parameters and characteristics for this part

Specification	PE45465

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Mounting Hardware
Frequency - Max [Max]	26.5 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Board Edge, End Launch
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Clamp

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Dielectric Material	Center Contact Plating	Frequency - Max [Max]	Center Contact Material	Impedance	Connector Style	Features	Number of Ports	Shield Termination	Mounting Type	Connector Type	Housing Color	Mating Cycles	Body Material	Mounting Feature
Pasternack PE45465	125 °C	-40 °C	Solder	Polytetrafluoroethylene (PTFE)	Gold	26.5 GHz	Beryllium Copper	50 Ohms	SMA	Mounting Hardware	1	Clamp	Board Edge End Launch	Female Socket Receptacle	Silver	500	Stainless Steel
Pasternack PE45466	125 °C	-40 °C	Solder	Polytetrafluoroethylene (PTFE)	Gold	26.5 GHz	Beryllium Copper	50 Ohms	SMA	Mounting Hardware	1	Clamp	Board Edge End Launch	Female Socket Receptacle	Silver	500	Stainless Steel
Pasternack PE45460			Clamp	Polytetrafluoroethylene (PTFE)	Gold	26.5 GHz	Brass	50 Ohms	SMA	Mounting Hardware	1	Screw		Male Pin Receptacle	Silver	500	Stainless Steel	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Receptacle, Female Socket 50 Ohms Board Edge, End Launch Solder
